Hanwha Techwin announced a new intercom product, the TID-600R, that brings together the company’s high-quality camera functionality with audio features and analytics. The new intercom has multiple applications, from acting as a help point for queries and emergencies, to access control or seamless communication with a control room or a front desk reception.
The SIP compliant TID-600R features a 2MP fisheye lens with a wide horizontal 180° field of view (114° vertical), low light performance (IR provides 16 feet/5 meters of infra-red illumination), and Wide Dynamic Range (WDR) for challenging lighting scenes. Additionally, the intercom is NDAA compliant.
TID-600R uses
The intercom is applicable across many different sectors, notably healthcare settings (where touchless access control is prioritized); car parks and transport settings (to improve visibility and communication); and office locations and residential settings (for a seamless entry and exit experience).
The product goes beyond a simple intercom system to offer surveillance features that improve security, integration with VMS and NVRs and can act as part of wider video surveillance and access control setup.

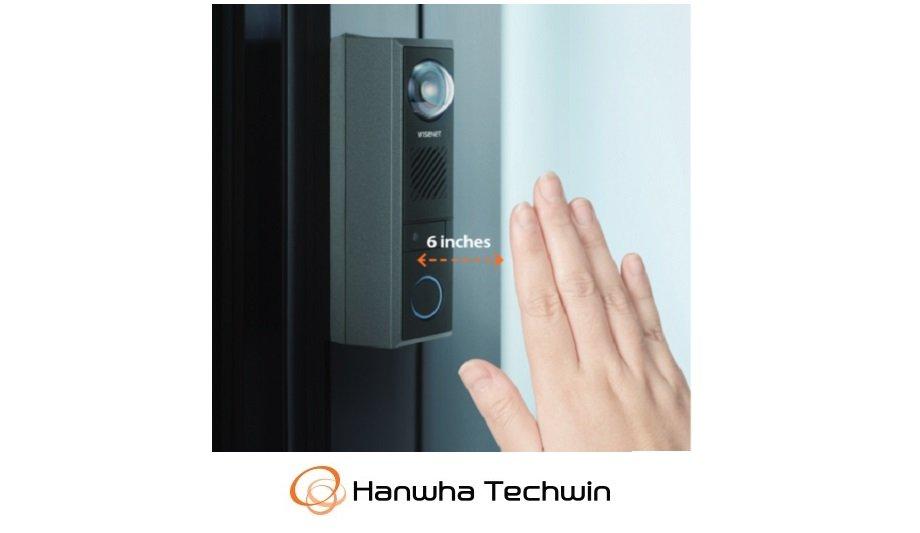

TID-600R offers a touchless call system, allowing individuals to simply raise their hand towards the device to initiate a call
Easy touchless control
In addition to the intercom’s push-button, the TID-600R offers a touchless call system, allowing individuals to simply raise their hand towards the device to initiate a call.
Touchless entry and exit solutions have become increasingly important post-COVID, reducing the risk of infection and cleaning needs. The touchless option can be easily switched on and off via the intercom’s intuitive user interface.
Visual features
The cameras within the intercom can also hand over events to other cameras in a security system to boost security and safety - for example during nighttime or when a building is unattended. This feature can be used to move a PTZ camera to point automatically at an entrance if someone is detected in front of it by the intercom camera.
Similarly, intelligent analytics such as line crossing, loitering, object classification, and more can add further insights for operators. All camera footage can be stored in a VMS or NVR for easy retrieval and analysis post-event. Along with edge storage available in the device itself through a Micro SD card slot.
This makes the TID-600R more flexible and useful than a traditional intercom device as it provides additional entry/exit data and automation.
Audio features
Sound classification analytics offers extra situational awareness to operators The intercom’s built-in speaker and microphone provide excellent call clarity with up to 85dB of volume at 0.5m, echo cancellation and noise reduction.
Users can program audio messages to automatically play when a call is initiated or someone enters the field of view. Sound classification analytics (detecting glass breakage, screen explosion, and gunshots) offers extra situational awareness to operators.
SIP 2.0 support
The TID-600R offers full SIP 2.0 support making it easy to integrate with existing VoIP systems. When a person interacts with the intercom, multiple phones at any location can be contacted simultaneously through the VoIP system, so the intercom will always be answered. It can also easily integrate with PBX servers.
Environmental protection
With an attractive metal casing in white or dark gray, the TID-600R is externally robust and utilizes tamper and shock detection analytics and alarms to notify operators of any potential tampering.
To fit in with a building’s aesthetics, the intercom comes with an additional range of mounts and other accessories
Its IP65 and IK08 classifications and NEMA 4 X enclosures fully protect the device from dust, water, and other potential environmental damage, prolonging the lifetime and quality of the intercom.
To fit in with a building’s aesthetics, the intercom comes with an additional range of mounts and other accessories.
Compatibility and security
The TID-600R intercom facilitates an open platform that can support edge-based third-party applications. There is additional API support with the Hanwha SUNAPI SDK and it supports ONVIF Profile S. Additionally it can be used with the Wisenet PoE extender camera range reducing the need for additional network cabling and LAN ports.
Uri Guterman, Head of Product & Marketing at Hanwha Techwin Europe, “The TID-600R intercom is the first product of its kind in the Hanwha Techwin portfolio bringing our market-leading camera and video analytics technologies to an intercom product. We’re excited to be able to offer customers a more extended solution that spans across video surveillance, access control, and communication, and benefits from Hanwha Techwin’s extensive industry experience.”
