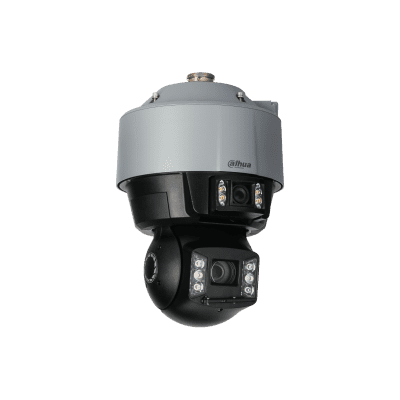

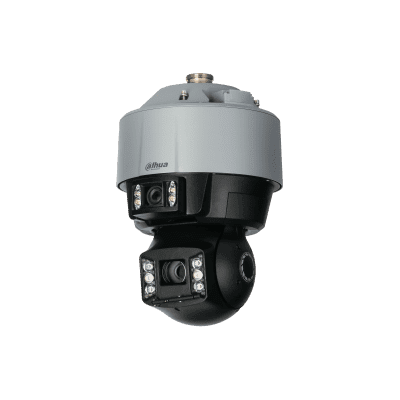

Dahua 4MP Starlight+ Network PTZ Camera with White Light and IR Illumination
Technical Specification
- Make: Dahua Technology
- Model code: DH-SDT5X2425-4Z
- Series: Dahua X-Spans Series
- Chip Inch Size: 1/1.8
- Color Type: Color / Monochrome
Captures a large area and great details at the same time High-quality imaging with 4MP resolution for overview channel, 4MP for detailed channel Consists of dual PTZ, carrying out panoramic and detail views Enhanced deep learning-based human and vehicle classification Face recognition: supports face information collection, property expression fetching, face database management and comparison
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>IP cameras |
| Model code | DH-SDT5X2425-4Z |
| Series | Dahua X-Spans Series |
| Chip Inch Size | 1/1.8 |
| Color Type | Color / Monochrome |
| Resolution | 4MP |
| Digital (DSP) | Yes |
| Specialist Type | PTZ |
| Sensitivity Lux | Color: 0.001 [email protected] ; B/W: 0.0001 [email protected] |
| Electrical Specifications |
Voltage: 36 V DC Power Consumption: Max. (Illuminator on + Intelligence on + Wiper on + Heater on + PTZ operation): 51 W |
| Motion Activated | Yes |
| Focal Length mm | Overview channel: 2.8 ~ 12 mm ; Detail channel: 7 ~ 175 mm |
| Mount Type | Wall |
| Wide Dynamic Range | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | Overview channel: 1 s–1/100,000 s Detail channel: 1 s–1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | Overview channel: ≥ 55 dB Detail channel: ≥ 55 dB |
| Zoom | Yes |
| Compression Type | Smart H.265+;H.265;Smart H.264+;H.264;H.264B;H.264 H;MJPEG |
| Network Properties |
Interface: RJ-45 (10/100 Base-T) Network Protocols: HTTP;HTTPS;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDN S;IPv6;802.1x;QoS;FTP;UPnP;ICMP;SNMP;SNMPv1/v2c/ v3(MIB-2);IGMP;ARP;RTCP;RTP;PPPoE;RTMP;TCP |
| Physical Specifications |
Dimensions mm: 294.5 x 277.0 x 421.6 Weight g: 9000 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F) Protection: IP67, IK10 Operating Humidity %: ≤ 95% (RH) |
Product description
Introducing the Dahua DH-SDT5X2425-4Z 4MP 25 Starlight+ White light & IR light Network PTZ Camera, an advanced security solution designed for dynamic surveillance environments. This dual PTZ system is equipped with dual vari-focal lenses, offering exceptional flexibility and coverage with a 25× optical zoom that reaches its full range in just 0.5 seconds. The camera employs Starlight technology to deliver outstanding image quality even in low-light conditions.
Key Features
- 4 Megapixel CMOS Sensor: Captures high-resolution footage with precision.
- AI Integrated Functions: Advanced AI ISP for superior image processing.
- Video Metadata: Extracts and classifies target attributes for detailed information retrieval, including human features, vehicles, and more.
- Face Recognition: Stores up to 10,000 face images for real-time matching and identification.
Durability and Protection
Built for reliability, the camera features IP67 and IK10 ratings, ensuring robust protection against dust, water, and impacts. Additionally, it includes TVS 8000V lightning and surge protection for enhanced resilience.
Intelligent Monitoring Capabilities
- Perimeter Protection: Distinguishes real threats by filtering out false alarms caused by environmental factors.
- Smart Tracking and AcuPick: Utilizes intelligent search technology for precise target tracking and swift data retrieval.
Ideal Use Cases
Perfectly suited for large-scale outdoor surveillance applications, such as public spaces, transportation hubs, and critical infrastructure, the Dahua DH-SDT5X2425-4Z camera offers unparalleled coverage and intelligent monitoring to ensure comprehensive security.
