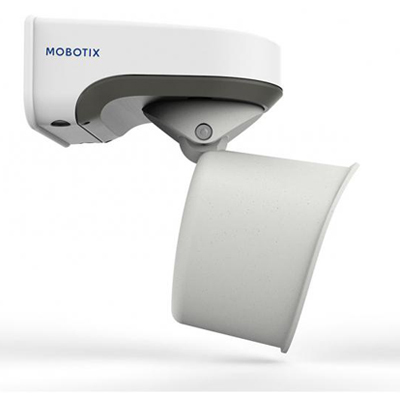

MOBOTIX M73 High Performance IoT Camera

Product Profile

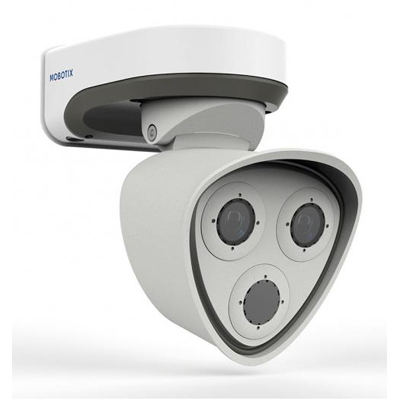

The M73 is extremely compact yet delivers a stand-out performance, thanks in particular to the powerful Quad-Core-ARM Cortex-A53 processor. With new technology and a sophisticated mounting concept, the camera offers space for three sensor or function modules for the very first time. This makes the M73 more versatile and flexible than any other MOBOTIX camera before it. Of course, the M73 fulfills current ONVIF profiles and offers flexible codec support with H.264 and H.265 (from Q2/2020), MxPEG+ and MJPEG.

Thanks to 4K UHD resolution, it delivers the brilliant images you rightly expect from MOBOTIX cameras. And it also stands out in terms of robustness thanks to its extremely stable performance: The camera has an integrated shock detector and a temperature resistance of -40° to +65°C, without any maintenance-intensive additional heating or ventilation — making it exceptionally strong.

Ingenious Engineering

Simple assembly. Robust materials. Sophisticated concept. The motherboard of the M73 is accommodated in a high-tech housing made from powder-coated aluminum, available in two different colors. The heat generated is dissipated to the outside via the metal, so that no active cooling is required.

Read more

Technical Specification

Make MOBOTIX
Manufacturer MOBOTIX Corp
Model code M73
Color Type Color / Monochrome
Resolution 4K
Digital (DSP) Yes
Sensitivity Lux 0.001 ~ 0.1
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: PoE
Power Consumption: 25 W
Mount Type Wall, Pole
Wide Dynamic Range Yes
Picture Elements HxV 3840 x 2160
Compression Type H.264, H.265 (from Q2/2020) with Triple-Streaming, MxPEG+, MJPEG
Network Properties Network Protocols: DHCP (client and server), DNS, ICMP, IGMP v3, IPv4, IPv6, HTTP, HTTPS, FTP, FTPS, NFS, NTP (client and server), RTP, RTCP, RTSP, SIP (client and server), SMB/CIFS, SNMP, SMTP, SSL/TLS v1.3, UDP, VLAN, VPN, Zeroconf/mDNS
Physical Specifications Weight g: 2,000
Dimensions mm: 228 x 153 x 232
Environmental Specifications Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F)
Protection: IP66, IK07
HD Yes
Additional info
  • Platform with the most flexible codec support: H.264, H.265*, MxPEG+ and MJPEG
  • ONVIF Profile S and T* compliance for highest level of interoperability
  • Increased Modularity with flexible usage of a combination of up to 3 sensor or functional modules
  • 4K UHD resolution
  • Triple shutter WDR with 120 dB Range
  • Easy Plug quick fastening system
  • Robust in all situations: -40 to 65 °C, IP66 and IK07 protected
