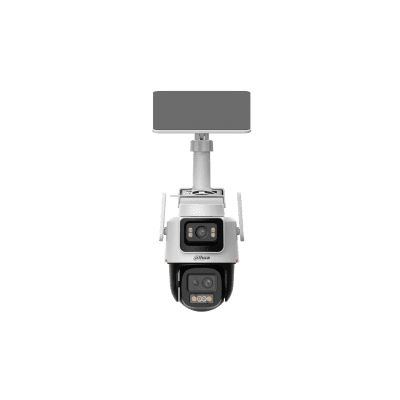

Dahua 3+3MP 4G WizColor AI PT Network Camera

Technical Specification

This product model is not available in this region

Dahua 3+3MP 4G WizColor AI PT Network Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-PTS2649C-3E3Z-4GB20
Series: Dahua Wireless Series
Chip Inch Size: 1/2.8
Color Type: Color

Additional info:

Displays videos in two channels at the same time 1/2.8" 3Megapixel CMOS WizColor technology 6x hybrid zoom Two-way talk SMD3.0 Siren and Light Active Deterrence Auto Tracking Lite Supports AOV mode 4G Connection Built-in 65Wh high-capacity ternary lithium battery Supports Type-C power supply Supports manual adjustment of fixed lens (Vertical: -7° to 20°)

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-PTS2649C-3E3Z-4GB20
Series	Dahua Wireless Series
Chip Inch Size	1/2.8
Color Type	Color
Resolution	3+3MP
Sensitivity Lux	Fixed Lens: 0.0005 lux@F1.0 (Color, 30 IRE); 0 lux (Illuminator on) ; PT Lens: 0.0005 lux@F1.0(Color, 30 IRE); 0 lux (Illuminator on)
Motion Activated	Yes
Focal Length mm	Fixed Lens: 2.8 mm ; PT Lens: 3.6 mm; 8.4 mm
Mount Type	Pole
Wide Dynamic Range	Yes
Auto Gain Control	Yes
White Balance	Yes
S/ N (Signal/ Noise) Ratio dB	≥55 dB
Zoom	Yes
Compression Type	Smart H.265+
Electrical Specifications	Power Consumption: Super Power Saving Mode: 40 mW / AOV Mode: 170 mW / Performance Mode 1: 2.4 W / Performance Mode 2: 3.7 W / Maximum Power Consumption: 8.0W
Physical Specifications	Dimensions mm: 223.2 x 130.0 x 215.0 Weight g: 1800
Environmental Specifications	Protection: IP66 Operating Temperature ^oC: -20 ~ +60 C (-4 ~ +140 F) Operating Humidity %: ≤ 95
Additional info	Displays videos in two channels at the same time 1/2.8" 3Megapixel CMOS WizColor technology 6x hybrid zoom Two-way talk SMD3.0 Siren and Light Active Deterrence Auto Tracking Lite Supports AOV mode 4G Connection Built-in 65Wh high-capacity ternary lithium battery Supports Type-C power supply Supports manual adjustment of fixed lens (Vertical: -7° to 20°)
