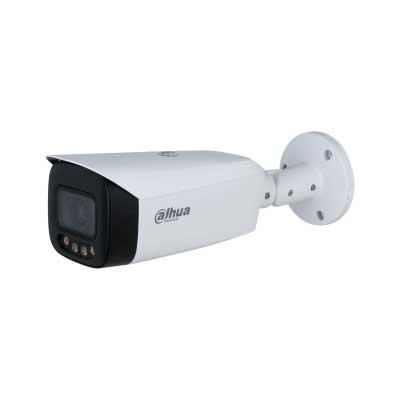

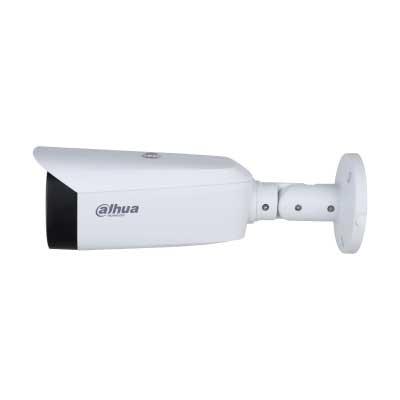

Dahua 8MP Full-color Fixed-focal Warm LED Bullet WizMind Network Camera

Product Profile

With starlight solution and deep learning algorithm, Dahua WizMind 5 Series network camera has various intelligent functions, including face capture, perimeter protection and people counting, which greatly improve the accuracy of video analysis. The series camera supports dustproof function, waterproof function and vandal-proof function, complying with the standards of IP67 and IK10 (Supported by some select models).

Read more

Technical Specification

Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code IPC-HFW5849T1-ASE-LED
Series WizMind 5 Series
Color Type Color / Monochrome
Resolution 8 MP
Digital (DSP) Yes
Specialist Type Network
Sensitivity Lux 0.0005
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC, PoE, ePoE
Power Consumption: 3.2 ~ 3.8 W
Motion Activated Yes
Focal Length mm 2.8 mm; 3.6 mm
Mount Type Pole
Wide Dynamic Range Yes
Picture Elements HxV 3840 x 2160
Network Properties Image Frame Rate: 30 fps
Inclusion DVR/ Web Server: 1
Interface: RJ-45 (10/100 Base-T)
Network Protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/3 s ~ 1/100,000 s
S/ N (Signal/ Noise) Ratio dB >56
Signal Mode PAL
Compression Type H.265; H.264; H.264H; H.264B; MJPEG
Physical Specifications Weight g: 1,380
Dimensions mm: 288 x 94 x 85
Environmental Specifications Operating Temperature oC: -40 ~ 60 C (-40 ~ 140 F)
Protection: IP67
Operating Humidity %: < 95
Additional info
  • 8MP 1/1.2" CMOS image sensor, low illuminance, high image definition
  • Outputs max. 8MP (3840 × 2160) @30 fps
  • Built-in warm illuminator, and the max. illumination distance is 40 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
  • Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker
  • 12V DC/PoE power supply
  • ePoE, IP67 protection
  • SMD 3.0
