HeatPro Perimeter Defense And Fire Detection

Product Profile

Hikvision, an IoT solution provider with video as its core competency, announced the launch of HeatPro, a new thermal series of cameras designed to provide affordable all-weather deterrent and alerts. It is especially useful in perimeter protection and fire prevention applications.

The HeatPro Series Cameras feature deep-learning thermal video analytics for perimeter protection, and object temperature measurement and fire detection with real-time alarms. Features like accurate human/vehicle classification, visual and auditory alarms for perimeter protection, and speedy temperature exception alarms for fire prevention make them ideal for SMB (small and midsize business) applications.

Perimeter defense with AI
When securing a perimeter, higher accuracy and a low false alarm rate can help reduce operation costs. The HeatPro Series achieves this by developing powerful video analytics based on Deep Learning algorithms, radically reducing false alarms.

The cameras focus on short-range perimeter protection (0-50meters), where they deliver target detection and classification. The use of AI means that the cameras can distinguish between a person and a vehicle. This comes in especially useful when the two targets are close together. Traditionally, they can only be recognized as one ‘target’, but intelligent algorithms mean that they can be detected separately, increasing accuracy.

Thermal cameras are also able to easily locate potential threats in zero visibility conditions, where a conventional camera could not. They do this by detecting the latent radiation emissivity of an object, so not relying on visible light. This means they can operate in all-weather conditions and the darkest night. They also don’t emit light, which means their presence is not obvious, making them useful in scenarios where they need to be hidden.

The HeatPro Series is also designed to be efficiently and quickly installed, with a simple, three-step deployment, bringing setup time down to 30 seconds. Traditionally thermal cameras require specialist engineers to configure and double check, takes both extra time and energy. HeatPro cameras have been designed with installation time and effort in mind – they are simpler to install and so installers can spend more time correctly configuring for optimum operations, and the lowest false alarm rate possible.

Temperature measurement for fire prevention
The HeatPro Series is also equipped with the ability to measure temperature. This process is very useful in a scenario where overheating could lead to fires. The camera can provide non-contact temperature measurement for fast and visible detection. This means that action can be taken earlier, potentially preventing a fire from the very beginning. The camera can trigger a fire alarm faster than a smoke sensor.

The temperature measurement function can also be used to help check any potential overheating issue and troubleshoot problems.

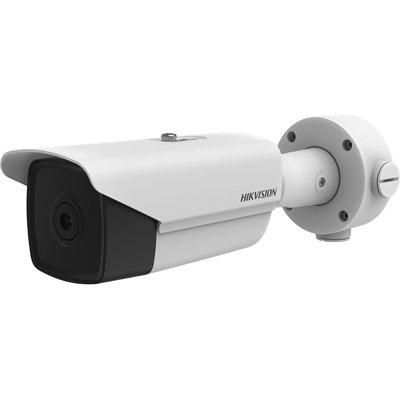

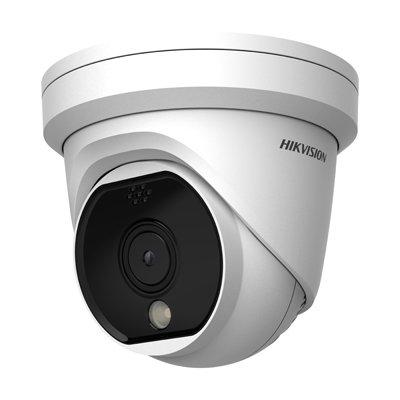

The series contains a number of different models and options, with bullet and turret forms, and Bi-spectrum or single lenses. The cameras can be built into a number of solutions, for instance seamlessly working with NVRs, AX PRO alarm systems, and even Hik-Connect for real-time mobile alerts by phone. They can be used in various scenarios – not least: residential buildings, offices, construction sites, car parks, retail outlets and warehouses.

“Dedicated to bringing professional protection solutions to the mass market, these cameras provide perimeter protection with unparalleled accuracy, and fire detection with superlative sensitivity”, says Stefan Li, Director of Thermal Products at Hikvision. “Hikvision HeatPro Series provides professional protection made simple.”

Read more

Technical Specification

Make Hikvision
Manufacturer Hikvision USA Inc.
Model code DS-2TD1117-2/PA
Series HeatPro Series
Resolution 160 × 120 (the resolution of output image is 320 × 240)
Specialist Type Thermal
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: 4.5 W
Focal Length mm 1.8 mm
Network Properties Image Frame Rate: 25 fps
Interface: 1, RJ45 10M/100M self-adaptive ethernet interface. 1, RS-485 interface
Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Auto Gain Control Yes
Signal Mode PAL, NTSC
Zoom Yes
Y/ C (Video Output) 1.0 V [p-p]/75 Ω, PAL/NTSC
Compression Type H.265/H.264/MJPEG
Physical Specifications Weight g: 920
Dimensions mm: 138 x 138 x 123
Environmental Specifications Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F)
Protection: IP66
Operating Humidity %: <95
System Requirements Web Browser: IE9+, chrome31-44, Firefox 30-51, Safari 5.02+ (mac)
Additional info
  • High sensitivity thermal module with 160 x 120 resolution
  • NETD is less than 40 mk (@25° C, F#=1.1)
  • Supports contrast adjustment
  • Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
  • Up to 15 palettes of adjustable color
  • Powerful behavior analysis functions, based on deep learning algorithm: Line crossing, intrusion, region entrance & exit
  • Reliable temperature-anomaly alarm
  • Advanced fire detection algorithm
  • Strobe light and audio alarm
