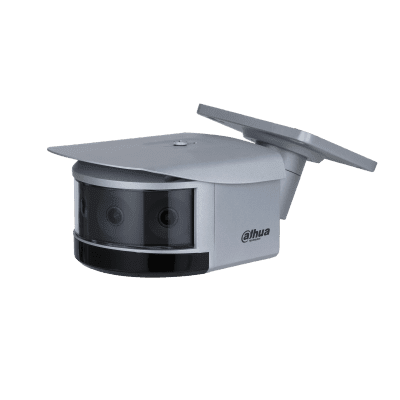

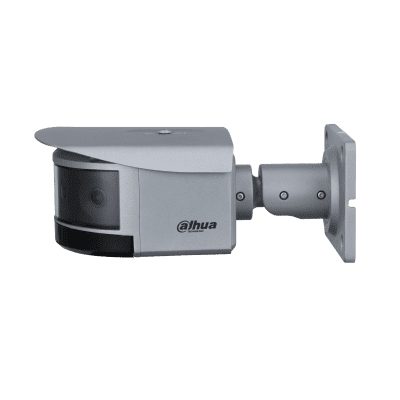

Dahua Technology IPC-PFW8840-A180 4×2MP WizMind Multi-Sensor Panoramic Network IR Bullet Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: IPC-PFW8840-A180
  • Series: WizMind Series
  • Chip Inch Size: 1/2.8
  • Color Type: Color / Monochrome
Read more
Additional info:

Four 2MP 1/2.8" CMOS image sensor, low illuminance, high image definition Outputs max. 8MP (4096 × 1800) @30 fps H.265 codec, high compression rate, ultra-low bit rate Built-in IR LED, max. IR distance: 30 m ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments DWDR, 3D NR, HLC, BLC, digital watermarking Intelligent functions: Crowd distribution map, Vehicle Density situation Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G SD card 12V DC/24V AC/PoE power supply; easy for installation Supports object tracking IP67, IK10 protection

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code IPC-PFW8840-A180
Series WizMind Series
Chip Inch Size 1/2.8
Color Type Color / Monochrome
Resolution 4×2MP
Specialist Type Network
Sensitivity Lux 0.002
Electrical Specifications Voltage: 12 V DC, 24 V AC, PoE+
Power Consumption: <16.2W
Motion Activated Yes
Focal Length mm 2.8
Wide Dynamic Range Yes
Picture Elements HxV 4096 x 1800
Network Properties Image Frame Rate: 25 ~ 30 fps
Interface: RJ-45 (10/100/1000 Base-T)
Network Protocols: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB >56
Compression Type H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Physical Specifications Dimensions mm: 297 x 169 x 120
Weight g: 2860
Environmental Specifications Protection: IP67, IK10
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F)
Operating Humidity %: <95
System Requirements Web Browser: IE: IE9 and later, Chrome: 50 and later, Firefox: 48 and later
Additional info
  • Four 2MP 1/2.8" CMOS image sensor, low illuminance, high image definition
  • Outputs max. 8MP (4096 × 1800) @30 fps
  • H.265 codec, high compression rate, ultra-low bit rate
  • Built-in IR LED, max. IR distance: 30 m
  • ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  • DWDR, 3D NR, HLC, BLC, digital watermarking
  • Intelligent functions: Crowd distribution map, Vehicle Density situation
  • Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
  • Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G SD card
  • 12V DC/24V AC/PoE power supply; easy for installation
  • Supports object tracking
  • IP67, IK10 protection
