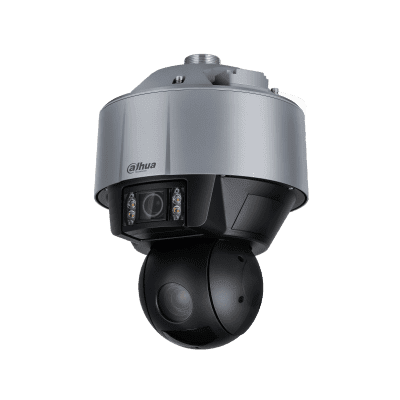

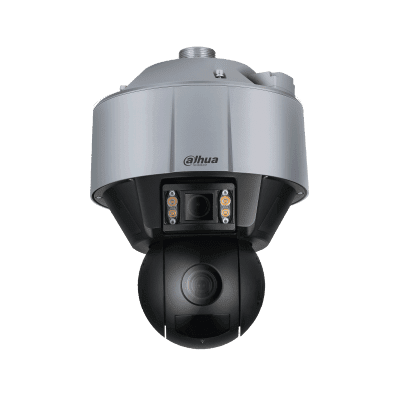

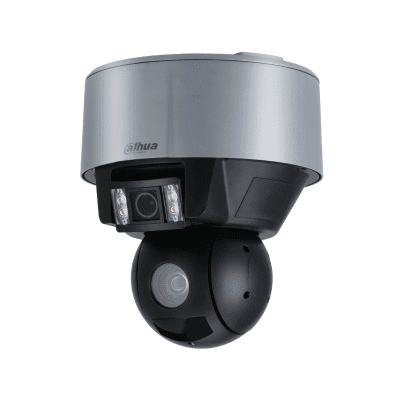

Dahua DH-SDT5X425-4Z4-QA-0832 4MP Starlight IR WizMind Network Dual-PTZ Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-SDT5X425-4Z4-QA-0832
- Series: WizMind Series
- Chip Inch Size: 1/1.8
- Color Type: Color / Monochrome
Additional info:
Dual PTZ system, dual vari-focal lens 1/1.8" 4Megapixel CMOS Powerful 25x optical zoom Starlight technology Max. 25/30 fps@4M Deep-learning-based auto tracking and perimeter protection Support Hi-PoE H.265 Encoding IP67
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>IP cameras |
| Model code | DH-SDT5X425-4Z4-QA-0832 |
| Series | WizMind Series |
| Chip Inch Size | 1/1.8 |
| Color Type | Color / Monochrome |
| Resolution | 4MP |
| Specialist Type | PTZ |
| Sensitivity Lux | Color: 0.001 lux / B/W: 0.0001 lux |
| Electrical Specifications |
Voltage: 36 V DC / Hi-PoE Power Consumption: Max.: 40 W |
| Motion Activated | Yes |
| Focal Length mm | Panorama: 8 ~ 32 mm / Detail: 5.4 ~ 135 mm |
| Mount Type | Wall, Ceiling, Pole |
| Wide Dynamic Range | Yes |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: TCP; FTP; RTMP; IPv6; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; DDNS; UPnP; ICMP; UDP; IGMP; HTTP; DHCP; SMTP; SNMP v1/v2c/v3 (MIB-2); QoS; RTSP; ARP |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | Panorama: 1 s–1/30,000 s / Detail: 1 s–1/30,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥ 55 |
| Zoom | Yes |
| Compression Type | H.264H; H.264B; Smart H.265+; H.265; MJPEG(Sub Stream); Smart H.264+; H.264M |
| Physical Specifications |
Weight g: 9000 Dimensions mm: 385 x Φ277 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F) Protection: IP67 Operating Humidity %: ≤95 |
| Additional info |
|
