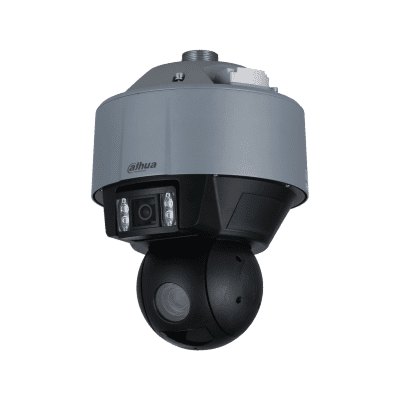

Dahua DH-SDT5X405-4F-QA-0600 4MP Starlight+ IR WizMind Network Dual-PTZ Camera
Technical Specification
- Make: Dahua Technology
- Model code: DH-SDT5X405-4F-QA-0600
- Series: WizMind Series
- Chip Inch Size: 1/1.8
- Color Type: Color / Monochrome
Dual PTZ system, dual vari-focal lens 1/1.8" 4Megapixel CMOS Powerful 5x optical zoom Starlight technology Max. 25/30 fps@4M Deep-learning-based auto tracking and perimeter protection Support Hi-PoE H.265 Encoding
Read moreMake | Dahua Technology |
---|---|
Manufacturer | Dahua Technology USA Inc. |
Category | Video Surveillance>IP cameras |
Model code | DH-SDT5X405-4F-QA-0600 |
Series | WizMind Series |
Chip Inch Size | 1/1.8 |
Color Type | Color / Monochrome |
Resolution | 4MP |
Specialist Type | PTZ |
Auto Iris | Yes |
Electrical Specifications |
Voltage: 36 V DC / Hi-PoE Power Consumption: Basic: 21 W / Max.: 40 W |
Motion Activated | Yes |
Focal Length mm | Panorama: 6 mm / Detail: 10 mm–50 mm |
Mount Type | Wall, Ceiling, Pole |
Wide Dynamic Range | Yes |
Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: TCP; FTP; RTMP; IPv6; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; DDNS; UPnP; ICMP; UDP; IGMP; HTTP; DHCP; SMTP; SNMP v1/v2c/v3 (MIB-2); QoS; RTSP; ARP |
Back Light Compensation | Yes |
Auto Gain Control | Yes |
White Balance | Yes |
Electronic Shutter Range | Panorama: 1/1 s–1/30,000 s ; Detail: 1/1 s–1/30,000 s |
S/ N (Signal/ Noise) Ratio dB | ≥ 55 |
Zoom | Yes |
Compression Type | H.264H; H.264B; Smart H.265+; H.265; MJPEG (Sub Stream 1); Smart H.264+; H.264M |
Physical Specifications |
Weight g: 9000 Dimensions mm: 385 x Φ277 |
Environmental Specifications |
Protection: IP67 Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F) Operating Humidity %: ≤ 95 |
System Requirements | Web Browser: IE 9 and later versions, Chrome 41 and later versions, Firefox 50 and later versions, Safari 10 and later versions |
Additional info |
|
Download PDF version Download PDF version |
