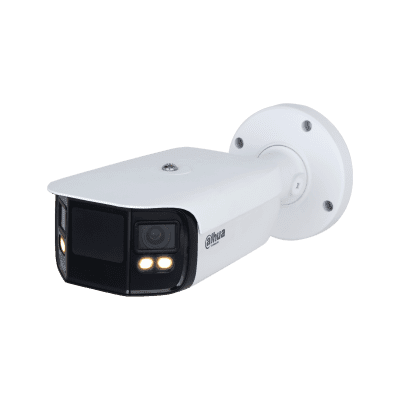

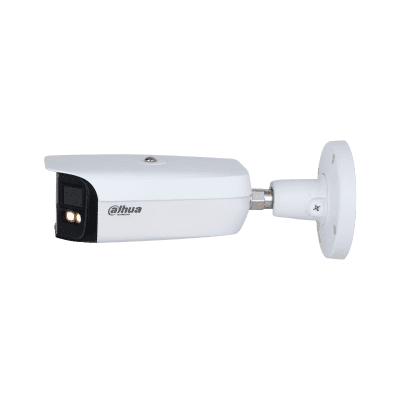

Dahua DH-IPC-PFW5849-A180-E2-ASTE 2×4MP Full-Color Dual-Lens Splicing WizMind Network Camera

Technical Specification

This product model is not available in this region

Dahua DH-IPC-PFW5849-A180-E2-ASTE 2×4MP Full-Color Dual-Lens Splicing WizMind Network Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-PFW5849-A180-E2-ASTE
Series: WizMind Series
Chip Inch Size: 1/1.8
Color Type: Color

Additional info:

Outputs 180° wide angle splicing image. Outputs max. 8 MP (4096 × 1800)@25 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in warm light, and the max. illumination distance is 40 m. ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic and speaker, support two-way talk. 12 VDC/PoE power supply, easy for installation. IP67 protection. Intelligent monitoring: Intrusion, tripwire, heat map, and people counting. EPTZ: Enlarge and track the targets of intelligent alarms. SMD 4.0.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-PFW5849-A180-E2-ASTE
Series	WizMind Series
Chip Inch Size	1/1.8
Color Type	Color
Resolution	2×4MP
Sensitivity Lux	0.0005 lux@F1.0 (Color, 30 IRE), 0.0002 lux@F1.0 (B/W, 30 IRE), (Illuminator on) 0
Electrical Specifications	Voltage: 12 V DC, PoE+, ePoE Power Consumption: Basic: 4.8 W (12 VDC); 5.5 W (PoE) Max. (WDR + intelligence + warm light + SPK): 10.5W (12 VDC); 11.8 W (PoE)
Focal Length mm	3.6 mm
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	Auto/Manual 1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Network Properties	Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; Bonjour
Physical Specifications	Weight g: 1420 Dimensions mm: 301.2 x 128.2 x 120.1
Environmental Specifications	Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: ≤95
System Requirements	Web Browser: IE: IE 8 and later, Chrome, Firefox
Additional info	Outputs 180° wide angle splicing image. Outputs max. 8 MP (4096 × 1800)@25 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in warm light, and the max. illumination distance is 40 m. ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card, built-in Mic and speaker, support two-way talk. 12 VDC/PoE power supply, easy for installation. IP67 protection. Intelligent monitoring: Intrusion, tripwire, heat map, and people counting. EPTZ: Enlarge and track the targets of intelligent alarms. SMD 4.0.
