Hikvision Technologies To Cater Needs Of Rubber Producer In Poland

Large industrial units often have a large area containing quite disparate security needs. Hikvision has a wide range of technologies to cater to every need, as was recently seen by a rubber producer in Poland. Kabat Tyre, in Budzyń, produces rubber products for industry and agriculture, including rubber mats, machine tires, and inner tubes.

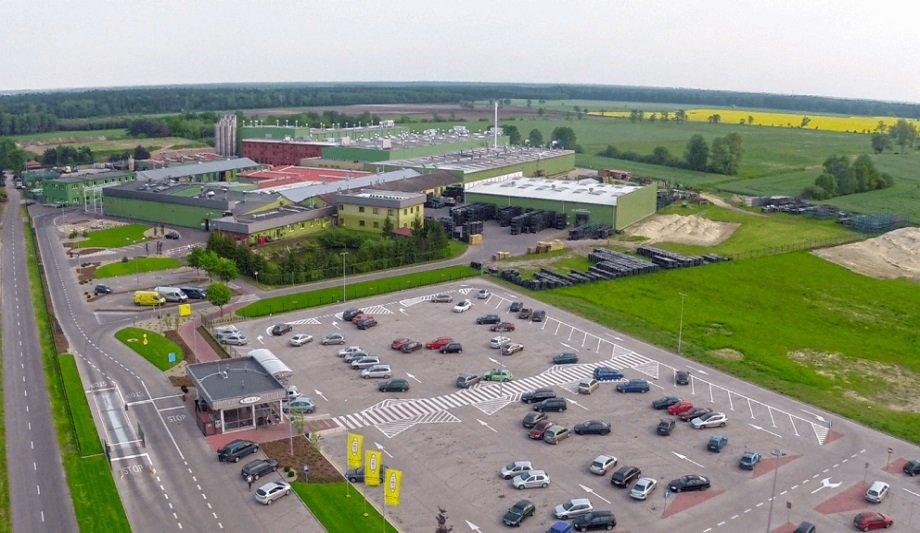

When it came to developing a new security system to cover its 30,000 m2 production plant, Kabat turned to system integrator Tel-Kom Serwis, which used Hikvision products to deliver a hi-res fit-for-purpose solution that was also scalable for any future development.

Challenge: Old systems with no flexibility

Need for hi-res observation

Kabat Tyre needed to overhaul its security system which was smaller and used lower resolution devices from different manufacturers.

They needed to provide hi-res observation for their production halls, warehouse, office building, and outdoor areas, particularly to allay their fear of theft from the plant and to provide peace of mind and operational support in case of accidents.

Need for reliable motion detection

Landfills for black rubber products do not reflect well the light, making it difficult to observe with cameras

In some areas, image quality in difficult lighting conditions was a particular concern. Not every part of the large area is well lit. Landfills for black rubber products (for example tires) do not reflect well the light, making them difficult to observe with cameras of lower sensitivity.

In addition to this, they needed reliable motion detection and the ability to combine independent recorders into one system. The system needed to provide all of this in a scaleable way, as this would be a system that will be expanded in the future. They wanted to be able to add new features at an affordable price. This was particularly challenging since they could not know what functions they will need.

Solution: Sharper images even in the dark

4K NVRs, Hikvision Video Management Software

Tel-Kom Serwis built a solution for Kabat based on five Embedded 4K NVRs (DS-9632NI-I8 and DS-7716NI-I4). These provided a strong core for the solution, also using Hikvision Video Management Software to manage all of the cameras, all operating within one LAN.

Ultra Low-light Smart Bullet Cameras

For the outdoor placements, tens Ultra Low-light Smart Bullet Cameras (DS-2CD4B26FWD-IZS) were used. These use Hikvision’s DarkFighter technology to provide bright, colorful images even in very low light conditions.

EasyIP fixed cameras

To cover the internal areas of the production hall and corridors, the EasyIP fixed cameras (DS-2CD2T42WD-IS) were installed, and IR fixed cameras (DS-2CD2142FWD-I) monitored the office.

Thermometric Bullet Camera

The tire testing points needed a slightly different device, so a Thermometric Bullet Camera was used

The tire testing points needed a slightly different device, since temperature exceptions needed to be monitored to protect against potential fires. So here, a Thermometric Bullet Camera (DS-2TD2136T-15) with reliable temperature exception (-20°C to 550°C (-4°C to 1022°F)) alarm function and advanced fire detection algorithm was used.

With hi-res images, even in the darkest areas, security operators have a much better view of what’s happening across the whole 3.5-hectare site.

Results

Easy installation and good image quality

Arkadiusz Wierzbicki, from Tel-Kom Serwis, says, “A Hikvision solution made perfect sense to deliver this solution for Kabat Tyre as it provides easy installation, reliability, intuitive operation, and good image quality. There are also no hidden costs, which was important for the ongoing development of their system.”

So Kabat Tyre has a high-resolution solution that brings all of its security needs together in a system that can be expanded to meet their changing needs in the future.

Plans

The future also looks rosy, as Kabat’s investor was so satisfied with the quality of the system that it is already in talks with Tel-Kom Serwis about expanding it further.

It is planned to build more halls increasing the production potential, in which CCTV systems and Access Control will be installed by Tel-Kom Serwis.
