Dahua Eyeball Network Camera with Advanced Detection

Technical Specification

This product model is not available in this region

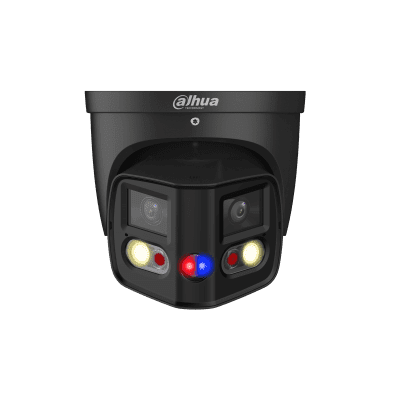

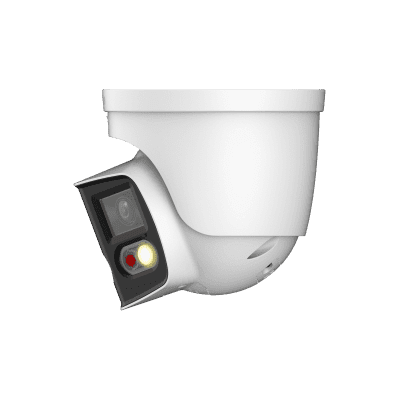

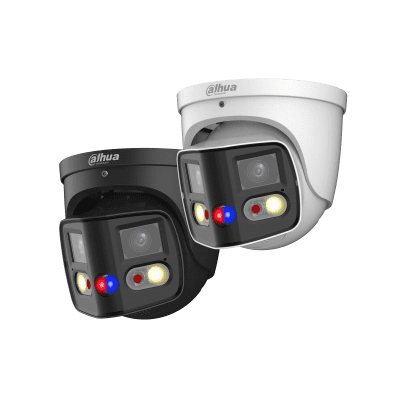

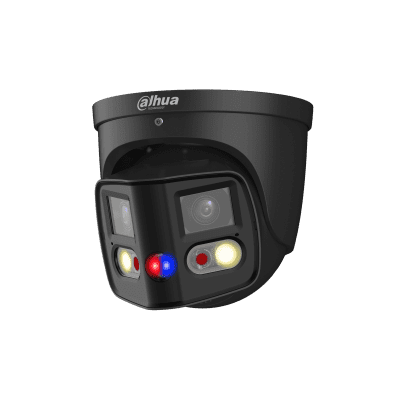

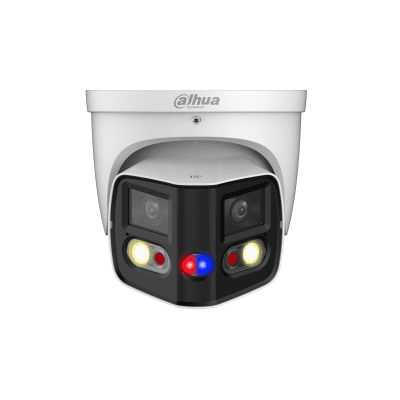

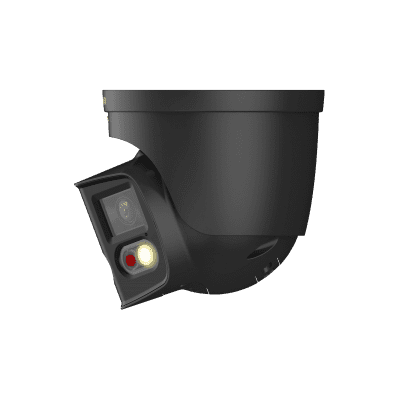

Dahua Eyeball Network Camera with Advanced Detection

Features:

Make: Dahua Technology
Model code: DH-IPC-PDW3849-A180-AS-PV
Series: WizSense Series
Chip Inch Size: 1/2.7
Color Type: Color / Monochrome

Additional info:

Outputs 180° wide angle splicing image. Outputs max. 8 MP (4096 × 1860)@20 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m. ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk. 12 VDC/PoE power supply, easy for installation. IP67 protection. Sound and light alarm (red and blue lights) EPTZ: Enlarge and track the targets of intelligent alarms. SMD 4.0. One-tap arming/disarming through alarm input

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-PDW3849-A180-AS-PV
Series	WizSense Series
Chip Inch Size	1/2.7
Color Type	Color / Monochrome
Resolution	2x4MP
Sensitivity Lux	0.005 lux@F1.4 (Color, 30 IRE) ; 0.0005 lux@F1.4 (B/W, 30 IRE) ; 0 lux (Illuminator on)
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: Max. 8.7 W (12 VDC); 10.85 W (PoE)
Focal Length mm	2.8 mm
Mount Type	Wall, Ceiling, Pole
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	Auto/Manual 1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56 dB
Zoom	Yes
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Network Properties	Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Physical Specifications	Weight g: 990 Dimensions mm: Φ122 x 135.2
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: ≤95
Additional info	Outputs 180° wide angle splicing image. Outputs max. 8 MP (4096 × 1860)@20 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in IR LED and warm light, the max. IR illumination distance is 25 m and warm light distance is 20 m. ROI, SMART H.264 +/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; built in dual Mic; built in speaker, support two-way talk. 12 VDC/PoE power supply, easy for installation. IP67 protection. Sound and light alarm (red and blue lights) EPTZ: Enlarge and track the targets of intelligent alarms. SMD 4.0. One-tap arming/disarming through alarm input
