Dahua AI Network Camera with WizColor X and Perimeter Protection
Technical Specification
- Make: Dahua Technology
- Model code: DH-IPC-HFW2249TL-S-PROX
- Series: WizSense Series
- Chip Inch Size: 1/1.8
- Color Type: Color / Monochrome
H.265 codec, high compression rate, ultra-low bit rate. Built-in warm light, the max warm light distance is 30 m. ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, invalid access, and voltage detection. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>IP cameras |
| Model code | DH-IPC-HFW2249TL-S-PROX |
| Series | WizSense Series |
| Chip Inch Size | 1/1.8 |
| Color Type | Color / Monochrome |
| Resolution | 2 MP |
| Sensitivity Lux | 0.00003 [email protected] |
| Electrical Specifications |
Voltage: 12 V DC / PoE Power Consumption: Max.: 5.4 W (12 VDC); 6.5 W (PoE) |
| Motion Activated | Yes |
| Focal Length mm | 2.8 mm; 3.6 mm |
| Wide Dynamic Range | Yes |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; NFS; P2P; Auto Registration |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | Auto/Manual 1/3 s–1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | >56 dB |
| Compression Type | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| Physical Specifications |
Weight g: 610 Dimensions mm: 205.6 x 80.2 x 76.2 |
| Environmental Specifications |
Protection: IP67 Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: ≤ 95% |
| System Requirements | Web Browser: IE; Chrome; Firefox |
Product description

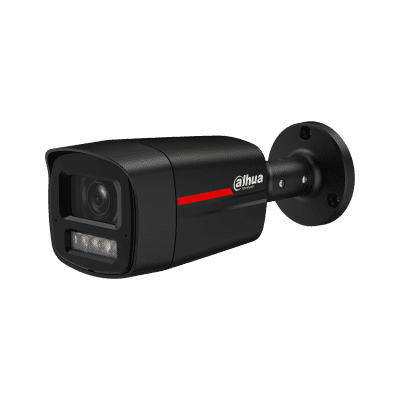

The Dahua DH-IPC-HFW2249TL-S-PROX is a cutting-edge 2MP WizColor X Fixed-focal Bullet WizSense Network Camera that leverages advanced AI technologies. It features an independent AI chip and deep learning algorithms, enabling precise detection of humans and vehicles. This camera stands out with Dahua's enhanced WizColor X technology, which uses AI-ISP 2.0 algorithms to improve light sensitivity dramatically, offering superior image quality even in low-light conditions with rich colors and fine details.
Key Features
- 2MP 1/1.8" CMOS image sensor delivering high-definition images.
- Outputs 2MP (1920 × 1080) at 25/30 fps with H.265 codec for high compression efficiency and low bandwidth usage.
- Built-in warm light offering illumination up to 30 meters.
- Advanced perimeter protection with smart motion detection to reduce false alarms.
- Weather-resistant design with IP67 rating for dust and water protection, ensuring reliable outdoor performance.
Ideal Use Cases
This network camera is perfect for environments requiring high-accuracy identification and monitoring, such as parking areas, perimeters, and other security-sensitive zones. Its ability to reliably identify motion and differentiate between humans and vehicles makes it an essential tool for modern surveillance systems.
