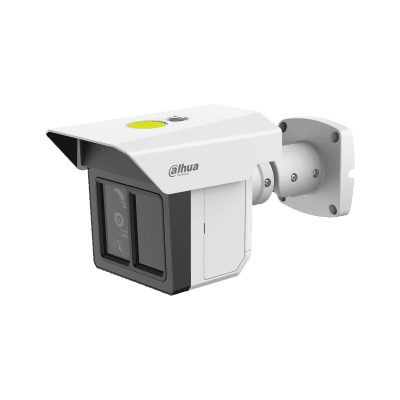

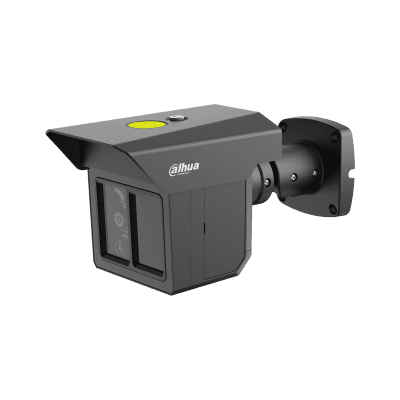

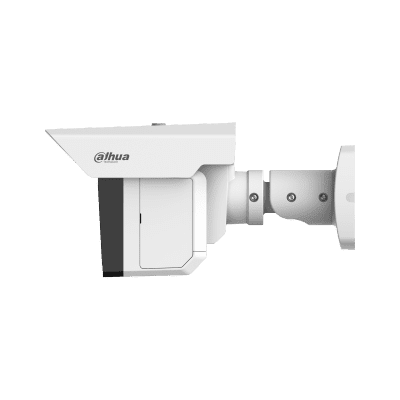

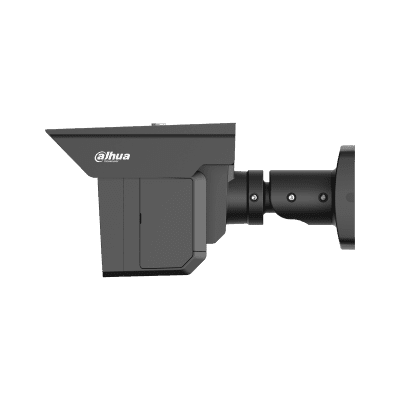

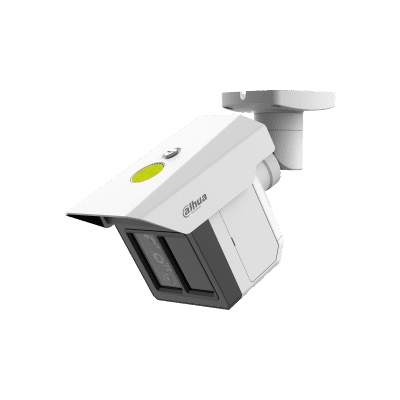

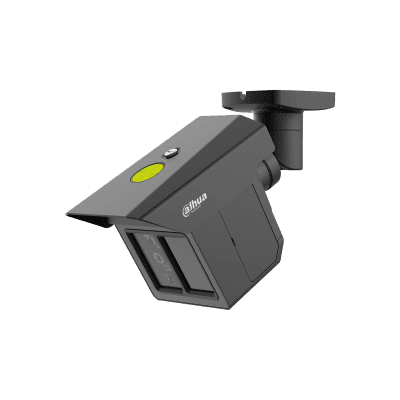

Dahua Triple-Sight Perimeter Protection Bullet WizMind Network Camera
Technical Specification
- Make: Dahua Technology
- Model code: DH-IPC-MFW5241T2-E3-ASE
- Series: WizMind Series
- Chip Inch Size: 1/2.8
- Color Type: Color / Monochrome
Built-in 8 IR LEDs, and the max. illumination distance is up to 100 m. Supports long-range perimeter protection. The camera can detect humans and vehicles up to 100 m away and more. WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. With deep learning algorithm, it supports Perimeter Protection, including Intrusion and tripwire (the two functions support the classification and accurate detection of vehicle and human). Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>IP cameras |
| Model code | DH-IPC-MFW5241T2-E3-ASE |
| Series | WizMind Series |
| Chip Inch Size | 1/2.8 |
| Color Type | Color / Monochrome |
| Resolution | 3 x 2 MP |
| Electrical Specifications |
Voltage: 12 V DC / PoE+ / ePoE Power Consumption: Max.: 22.1 W (12 VDC); 23.6 W (PoE) |
| Focal Length mm | Channel 1: 3.6 mm / Channel 2: 12 mm / Channel 3: 25 mm |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | Auto/Manual 1/3 s–1/100,000 s |
| S/ N (Signal/ Noise) Ratio dB | >56 dB |
| Compression Type | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) |
| Network Properties |
Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P; Bonjour |
| Physical Specifications |
Weight g: 2400 Dimensions mm: 278.6 x 124.0 x 140.4 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67, IK10 Operating Humidity %: ≤ 95 |
Product description
Dahua Technology DH-IPC-MFW5241T2-E3-ASE
The Dahua DH-IPC-MFW5241T2-E3-ASE is a sophisticated 3 × 2MP Triple-Sight Perimeter Protection Bullet WizMind Network Camera designed for precise and reliable perimeter surveillance. Equipped with a 1/2.8" CMOS image sensor, it delivers low luminance and high-definition images, capable of rendering up to 2MP at 25 fps across three channels.
Key Features
- Advanced Image Technology: Includes wide dynamic range (WDR), 3D noise reduction (3D NR), and backlight compensation (BLC) for clear images in diverse conditions.
- Deep Learning & Intelligent Detection: Utilizes deep learning algorithms to accurately classify and detect humans and vehicles while minimizing false alarms.
- Long-Range Perimeter Protection: Detects targets up to 100 meters with enhanced accuracy using multi-channel fusion and illumination by area technology.
- Built-In IR LEDs: Offers illumination up to 100 meters, ensuring effective surveillance in low-light conditions.
- Robust Design: IP67 and IK10 certified for dust, water, and vandal resistance, making it suitable for outdoor applications.
Ideal Use Cases
This camera is perfect for diverse environments such as parking lots, campuses, and industrial sites, where accurate human and vehicle detection is crucial. Its adaptable illumination and AI-enhanced image processing cater to the specific security needs of high-risk areas.
With integrated features such as two-way audio and digital watermarking for video authentication, the Dahua DH-IPC-MFW5241T2-E3-ASE demonstrates exceptional versatility and security, making it a premium choice for enterprise-level perimeter protection.
