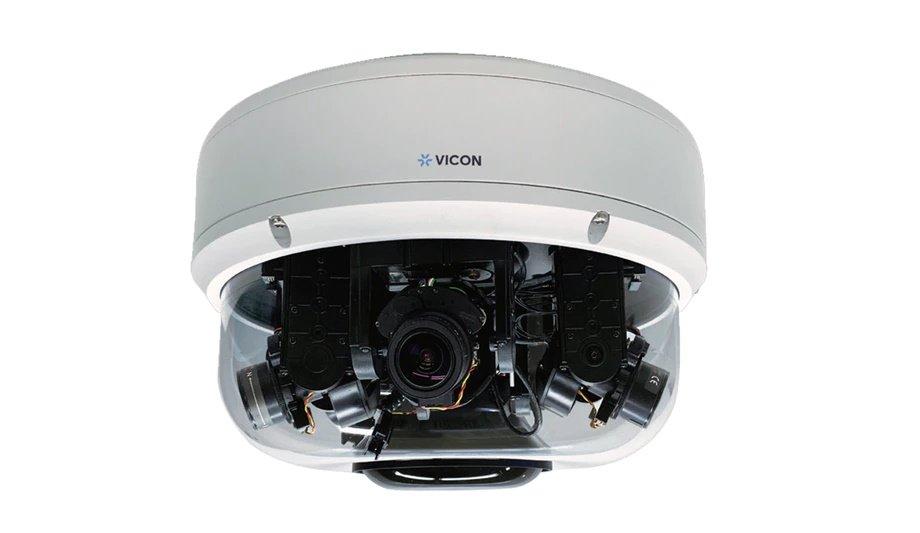

Vicon Industries’ V1020-WIR-360 multi-sensor camera is designed to provide users with the straightforward installation while delivering powerful performance and quality.
This exceptional camera is comprised of four independently adjustable sensors that eliminate blind spots so that users can monitor extremely wide areas, with just a single IP address and cable.
The V1020-WIR-360 camera is a great addition to Vicon’s camera line, providing the widest coverage area. This powerful camera is perfect for indoor and outdoor use such as parking lots, airports, stadiums, correctional facilities, commercial building corridors, warehouses, and more.
The multi-sensor is available with 5 MP sensors, creating a 20 MP model, providing exceptional image quality
The multi-sensor is available with 5 MP sensors, creating a 20 MP model, providing exceptional image quality for any application. Designed for both indoor and outdoor use, this durable, reliable, and flexible multi-sensor camera is IK10 rated for vandal protection and IP66 to withstand the toughest of environments.
Easy installation and remote configuration
These multi-sensor cameras are engineered to save installers time, money, and frustration. Traditional non-repositionable multi-sensor cameras typically require at least two individuals for installation and tedious manual adjustments of the modules to obtain the desired FOV.
The V1020-WIR-360 multi-sensor camera is designed to be effortlessly configured remotely from a PC and eliminate the need of requiring multiple people for an installation. Users are provided with the freedom to change their FOV as needed, without having to worry about manual installation changes.
PTZ control and 360º coverage
The camera offers preset for 270⁰ or 360⁰ views, along with which, users can also create custom views through each sensor’s independent PTZ control. Additionally, they can also save up to two user-defined presets, with each camera module independently positioned and zoomed as required, providing optimal surveillance.
The 270º view is commonly used in corners, such as the corner of a building. Typical installation practice for a 270º setup is to mount on the corner of a building, allowing users to view directly in-front of them and to their left and right. The fourth sensor can then be positioned as desired to provide additional coverage such as looking straight down to eliminate blind spots.
Integration with Valerus and other VMS platforms
The ONVIF-compliant multi-sensor cameras integrate with most major VMS platforms and Vicon’s acclaimed Valerus
A 360º is ideal for wide areas and is typically mounted to a pole and used in settings such as intersections and parking lots. This view’s FOV takes all angles, also eliminating the potential of any blind spots.
The ONVIF-compliant multi-sensor cameras integrate with most major VMS platforms and Vicon’s acclaimed Valerus. When integrated with Valerus, the multi-sensor camera also supports Museum Search to streamline security investigations.
Starlight technology for exceptional color images
These powerful cameras also deliver fantastic detail, day or night. With True WDR, the cameras can overcome challenging lighting conditions during the day, while 131 ft of IR illumination ensures that users can see every detail, even in the darkness of the night.
The standout feature of this multi-sensor camera, when compared to the competition, is the advanced starlight imaging capabilities. Starlight illumination allows users to see vivid colors and sharp details that would otherwise go unnoticed. Operators can see critical forensic details that they would otherwise miss in traditional IR black-and-white images.
The camera can be powered by 24 VAC, 24 VDC, or with either IEEE 802.3at (PoE+) or IEEE 802.3bt Class 5 (PoE++) Power over Ethernet. The PoE source is automatically detected with the only performance difference being the IR distance of up to 131 ft (40 m) on PoE++ and up to 98 ft (30 m) on PoE+.
