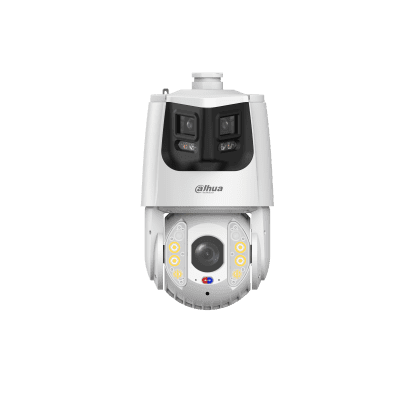

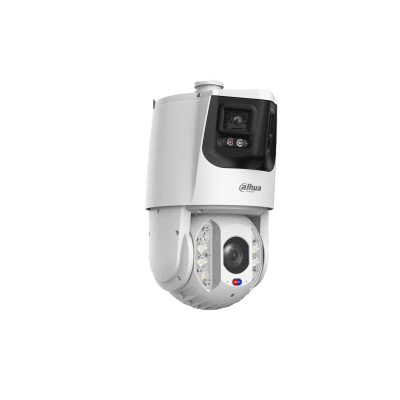

Dahua Smart Dual Illumination Active Deterrence Network PTZ Camera
Technical Specification
- Make: Dahua Technology
- Model code: DH-SDT6E432-8P-MB-A-PV1
- Series: Dahua X-Spans Series
- Chip Inch Size: 1/2.7
- Color Type: Color / Monochrome
Overview channel: Outputs 180° wide angle splicing image Max. 25/30 fps@8M Detail channel: 1/2.8"4Megapixel STARVIS™ CMOS 32× optical zoom Max. 25/30 fps@4M IR distance up to 250m Warm light distance up to 100m Xinghan Large-Scale AI Models WizTracking Face detection Perimeter protection Active deterrence Smart dual light + Built-in dual mics and a speaker for two-way talk Sound and light alarm (red and blue lights) Gyroscope EIS Acupick SMD 4.0
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>IP cameras |
| Model code | DH-SDT6E432-8P-MB-A-PV1 |
| Series | Dahua X-Spans Series |
| Chip Inch Size | 1/2.7 |
| Color Type | Color / Monochrome |
| Resolution | 8+4MP |
| Specialist Type | PTZ |
| Electrical Specifications |
Voltage: 36 V DC / PoE++ Power Consumption: Max.: 40 W |
| Focal Length mm | Overview channel: 2.8 mm; Detail channel: 4.8 mm–154 mm |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1 s–1/30,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥55 dB |
| Zoom | Yes |
| Compression Type | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Network Properties |
Interface: RJ-45 (100/1,000 Base-T) Network Protocols: HTTP;HTTPS;TCP/ IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802. 1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP; PPPoE;RTMP;Bonjour;NFS |
| Physical Specifications |
Weight g: 5300 Dimensions mm: 247 x 202 x 359.8 |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +70 C (-40 ~ +158 F) Protection: IP67, IK10 Operating Humidity %: ≤95% |
| System Requirements | Web Browser: web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions |
Product description
The Dahua Technology DH-SDT6E432-8P-MB-A-PV1 is a cutting-edge 8+4MP 32x Smart Dual Illumination Active Deterrence X-Spans Network PTZ Camera, designed to elevate security monitoring across various industries. This advanced multi-sensor device integrates an intelligent AI chip for enhanced target tracking and area surveillance, offering 180° wide-angle splicing images at a maximum resolution of 8 megapixels. The detail camera, featuring a 4-megapixel STARVIS™ CMOS sensor, supports 32x optical zoom and IR illumination extending up to 250 meters, ensuring unparalleled visibility in low-light conditions.
The camera is equipped with Smart Dual Light technology, dynamically switching between infrared and white light to capture full-colour images of key events, thereby minimising light pollution. Its robust AI-ISP capabilities adapt to variable environments to deliver high-quality image outputs with rich detail, and it further enhances security with features like Smart Tracking and Perimeter Protection to filter false alarms effectively.
Key Features:
- Xinghan Large-Scale AI Models for superior edge AI processing
- Built-in dual microphones and speaker for two-way communication
- Active deterrence with red and blue lights and sound alarms
- IP67 and IK10 protection, making it resistant to harsh weather and impact
- Wide compatibility with network protocols and management software
Ideal Use Cases
This model is well-suited for applications requiring high-security monitoring such as industrial sites, urban traffic management, and construction surveillance, offering features like helmet and uniform compliance detection to ensure workplace safety.
