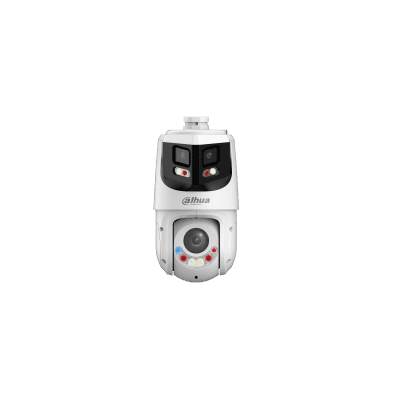

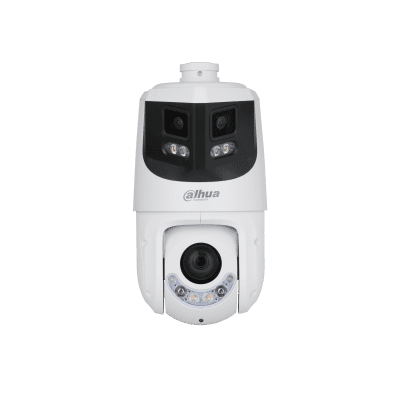

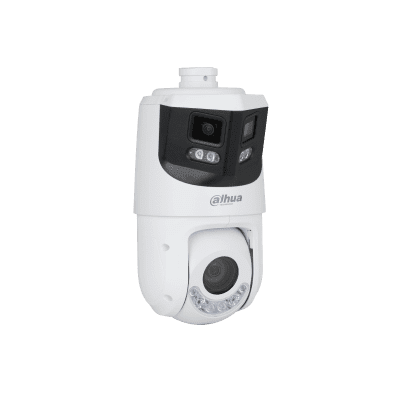

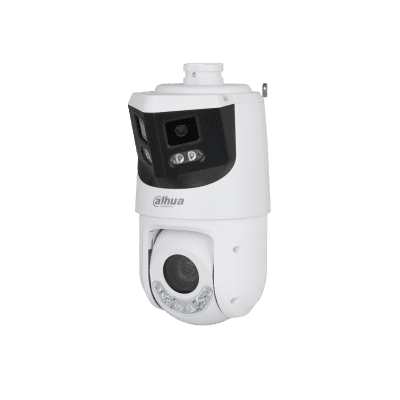

Dahua Starlight Network Panoramic Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-SDT4E425-8P-GB-APV1
- Series: WizSense Series
- Chip Inch Size: 1/2.7
- Color Type: Color / Monochrome
Additional info:
Panorama：Outputs 180° wide angle splicing image Detail: 1/2.8"4Megapixel STARVIS™ CMOS 25x optical zoom Max. 25/30 fps@8M IR distance up to 100 m Auto tracking 3.0 Smart tracking Perimeter protection Active deterrence Smart dual light +
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>IP cameras |
| Model code | DH-SDT4E425-8P-GB-APV1 |
| Series | WizSense Series |
| Chip Inch Size | 1/2.7 |
| Color Type | Color / Monochrome |
| Resolution | 8MP+4MP |
| Specialist Type | PTZ |
| Sensitivity Lux | Panorama: 0.005 lux@F1.4 (Color, 30 IRE); 0.0005 lux@F1.4 (B/W, 30 IRE); 0 lux (illuminator on) ; Detail: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Electrical Specifications |
Voltage: 12 V DC, PoE Power Consumption: Max: 25 W (illuminator + heating glass + Siren and Light Active Deterrence + ICR + PTZ) |
| Focal Length mm | Panorama: 2.8 mm; Detail: 5 mm–125 mm |
| Wide Dynamic Range | Yes |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45 (100/1,000 Base-T) Network Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6;802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; IGMP; ARP; RTCP; RTP; PPPoE; RTMP; Bonjour; NFS |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1 s–1/30,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥55 dB |
| Zoom | Yes |
| Compression Type | Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1) |
| Physical Specifications |
Weight g: 3100 Dimensions mm: 194.2 x 160 x 311 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -40 ~ +65 C (-40 ~ +149 F) Operating Humidity %: ≤95 |
| Additional info |
|
