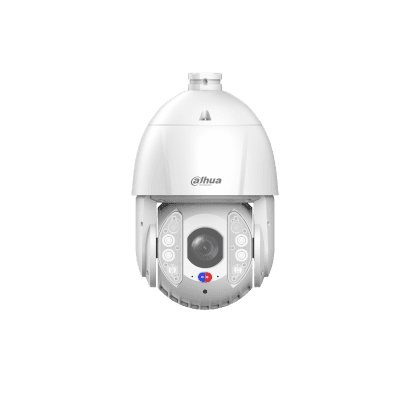

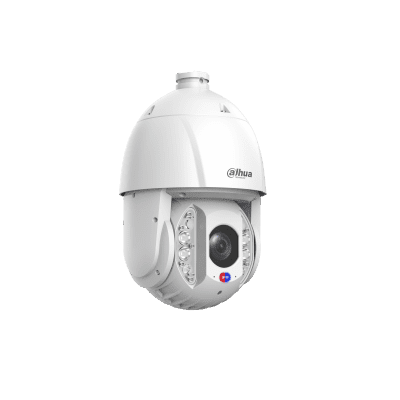

Dahua Smart Dual Illumination Active Deterrence Network PTZ Camera
Technical Specification
- Make: Dahua Technology
- Model code: DH-SD6E445MB-HNR-A-PV1
- Series: WizSense Series
- Chip Inch Size: 1/2.8
- Color Type: Color / Monochrome
45x optical zoom Max. 25/30fps@4M IR distance up to 250m Xinghan Large-Scale AI Models Warm light distance up to 100m Built-in dual mics and a speaker for two-way talk Sound and light alarm (red and blue lights) WizTracking Perimeter protection Face detection Acupick
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>IP cameras |
| Model code | DH-SD6E445MB-HNR-A-PV1 |
| Series | WizSense Series |
| Chip Inch Size | 1/2.8 |
| Color Type | Color / Monochrome |
| Resolution | 4MP |
| Electrical Specifications |
Voltage: 24 V DC / PoE+ Power Consumption: 21 W (24 VDC) |
| Focal Length mm | 3.95 ~ 177.25 mm |
| Wide Dynamic Range | Yes |
| Network Properties |
Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: HTTP;HTTPS;TCP/ IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802. 1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP; PPPoE;RTMP;Bonjour;SMB;NFS |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1s–1/30000s |
| S/ N (Signal/ Noise) Ratio dB | ≥55 dB |
| Compression Type | Smart H.265+;H.265;Smart H.264+;H.264;H.264B;H.264H;MJPEG(Sub Stream 1) |
| Physical Specifications |
Weight g: 4450 Dimensions mm: 208 x 202 x 325 |
| Environmental Specifications |
Protection: IP67, IK10 Operating Temperature oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: ≤ 95 |
Product description
Dahua DH-SD6E445MB-HNR-A-PV1: 4MP 45x Smart Dual Illumination Active Deterrence Network PTZ Camera
The Dahua DH-SD6E445MB-HNR-A-PV1 is a state-of-the-art 4MP PTZ camera designed to deliver exceptional performance in surveillance scenarios. Featuring a 45x optical zoom and smart dual illumination, this camera ensures high-quality imaging in diverse lighting conditions. The advanced 1/2.8" STARVIS™ CMOS sensor captures vivid detail, while infrared capabilities extend up to 250m, guaranteeing optimal monitoring even at night.
Key Features
- Dual Illumination: Smart dual light technology switches between IR and warm light, providing full-colour video capture when needed and reducing light pollution.
- Advanced AI Functions: Equipped with Dahua's WizSense technology, it offers features like perimeter protection, face detection, and smart motion detection (SMD 4.0) to minimise false alarms.
- Xinghan AI Models: Seamlessly integrates powerful edge AI model algorithms to enhance operational and storage capabilities.
- Comprehensive Detection: Detects motor and non-motor vehicles, faces, and human bodies, with high-quality image and attribute extraction.
- Robust Design: IP67-rated for weather resistance and IK10-rated for vandal resistance, ensuring durability in challenging environments.
Ideal Use Cases
The DH-SD6E445MB-HNR-A-PV1 is perfect for professional security applications including critical infrastructure protection, urban surveillance, and transportation hubs. Its extensive range of intelligent features coupled with robust construction makes it an excellent choice for industry professionals seeking reliable and advanced surveillance solutions.
