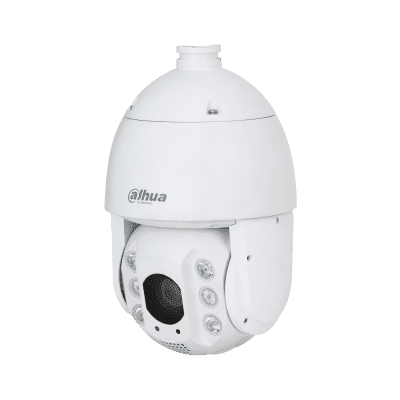

Dahua DH-SD6C3425XB-HNR-A-PV1 4MP 25x Starlight IR WizSense Network PTZ Camera
Technical Specification
Features:
- Make: Dahua Technology
- Model code: DH-SD6C3425XB-HNR-A-PV1
- Series: WizSense Series
- Chip Inch Size: 1/2.8
- Color Type: Color / Monochrome
Additional info:
1/2.8" 4Megapixel STARVIS™ CMOS Powerful 25x optical zoom Starlight technology IR distance up to 150 m Perimeter protection Face detection Metadata Full-color illuminator; red and blue warning light IP66 Smart dual illuminators (recommended to use within 50 m)
Read more| Make | Dahua Technology |
|---|---|
| Manufacturer | Dahua Technology USA Inc. |
| Category | Video Surveillance>IP cameras |
| Model code | DH-SD6C3425XB-HNR-A-PV1 |
| Series | WizSense Series |
| Chip Inch Size | 1/2.8 |
| Color Type | Color / Monochrome |
| Resolution | 4MP |
| Specialist Type | PTZ |
| Sensitivity Lux | Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, (IR light on) 0 |
| Electrical Specifications |
Voltage: 24 V DC / PoE+ Power Consumption: Basic: 13 W, Max.: 23 W |
| Motion Activated | Yes |
| Focal Length mm | 4.8 mm ~ 120 mm |
| Mount Type | Wall, Ceiling, Pole, Corner, Parapet |
| Wide Dynamic Range | Yes |
| Back Light Compensation | Yes |
| Auto Gain Control | Yes |
| White Balance | Yes |
| Electronic Shutter Range | 1/1 s ~ 1/30,000 s |
| S/ N (Signal/ Noise) Ratio dB | ≥ 55 dB |
| Zoom | Yes |
| Compression Type | Smart H.265+; H.265; Smart H.264+; H.264B; H.264H; MJPEG |
| Network Properties |
Interface: RJ-45 (10/100 Base-T) Network Protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; SSL; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; IP Filter; RTMP; Bonjour; TCP; SMB; NFS |
| Physical Specifications |
Weight g: 4600 Dimensions mm: 325.3 x Φ202 |
| Environmental Specifications |
Protection: IP66 Operating Temperature oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: ≤ 95 |
| System Requirements | Web Browser: IE 7 and later versions, Chrome 42 and earlier versions, Firefox 52 and earlier versions, Safari |
| Additional info |
|
