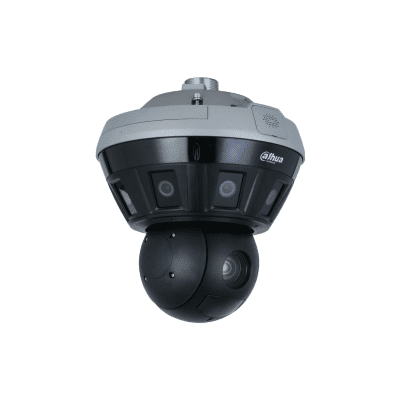

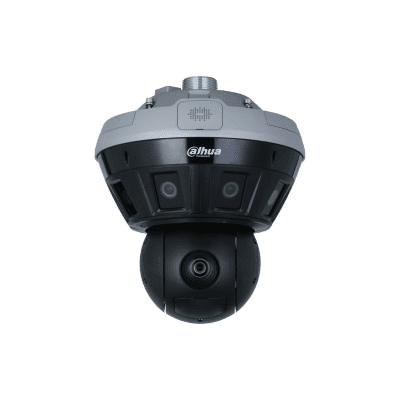

Dahua DH-PSDW81642S-A360-D425 16 MP Multi-Sensor 360° Panoramic PTZ Mini Hubble Wizmind Network Camera

Technical Specification

This product model is not available in this region

Dahua DH-PSDW81642S-A360-D425 16 MP Multi-Sensor 360° Panoramic PTZ Mini Hubble Wizmind Network Camera

Features:

Make: Dahua Technology
Model code: DH-PSDW81642S-A360-D425
Series: WizMind Series
Chip Inch Size: 1/1.8
Color Type: Color / Monochrome

Additional info:

Panoramic parameters: 8 × 2 MP 1/1.8" CMOS image sensors. PTZ parameters: 1 × 4 MP 1/1.8" CMOS image sensors. PTZ camera: Built-in laser illuminator, max. illumination distance: 100 m. PTZ camera: 25x optical zoom,16x digital zoom. H.265 codec, high compression rate, ultra-low bit rate. 3D NR, HLC, BLC, applicable to various monitoring scenes. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Smart tracking. Built-in dual MICs and dual speakers, support two way-talk. Intelligent Functions: Panoramic Network Camera: Perimeter Protection; PTZ Camera: Perimeter Protection, Face Detection and Video Metadata.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-PSDW81642S-A360-D425
Series	WizMind Series
Chip Inch Size	1/1.8
Color Type	Color / Monochrome
Resolution	16 MP
Sensitivity Lux	Panoramic network camera:0.001 lux @F1.0(Color, 30 IRE); 0.0001 lux@F1.0(B/W, 30 IRE) / PTZ camera:0.001 lux @F1.6(Color, 30 IRE); 0.0001 lux @F1.6(B/W, 30 IRE); 0 lux (Illuminator on)
Auto Iris	Yes
Electrical Specifications	Voltage: 36 V DC Power Consumption: Basic: 35 W (36 VDC)
Motion Activated	Yes
Focal Length mm	Panoramic network camera 2.8 mm / PTZ camera: 5.3 mm–134 mm
Mount Type	Wall, Ceiling, Pole, Corner
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	Panoramic network camera:Auto/Manual 1/3 s-1/100,000 s / PTZ Camera:Auto/Manual 1/1 s-1/300,000 s
S/ N (Signal/ Noise) Ratio dB	Panoramic network camera:51 dB / PTZ camera: 51.5 dB
Zoom	Yes
Compression Type	H.265; H.264; H.264H; MJPEG (Only supported by the sub stream)
Network Properties	Interface: RJ-45(10/100/1000 Base-T) Network Protocols: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Physical Specifications	Weight g: 7000 Dimensions mm: 326 x Φ280
Environmental Specifications	Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: ≤95
Additional info	Panoramic parameters: 8 × 2 MP 1/1.8" CMOS image sensors. PTZ parameters: 1 × 4 MP 1/1.8" CMOS image sensors. PTZ camera: Built-in laser illuminator, max. illumination distance: 100 m. PTZ camera: 25x optical zoom,16x digital zoom. H.265 codec, high compression rate, ultra-low bit rate. 3D NR, HLC, BLC, applicable to various monitoring scenes. ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments. Smart tracking. Built-in dual MICs and dual speakers, support two way-talk. Intelligent Functions: Panoramic Network Camera: Perimeter Protection; PTZ Camera: Perimeter Protection, Face Detection and Video Metadata.
