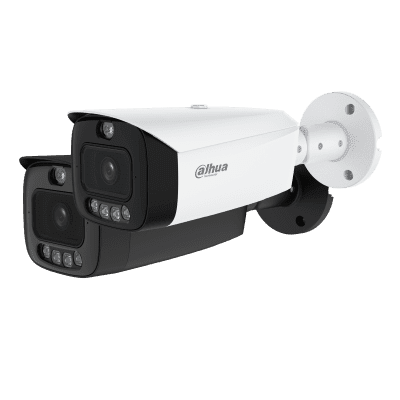

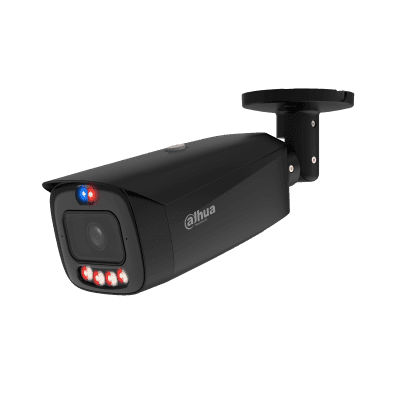

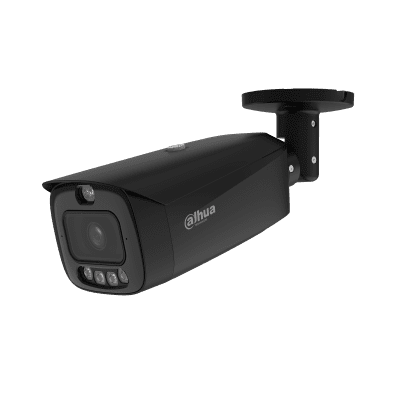

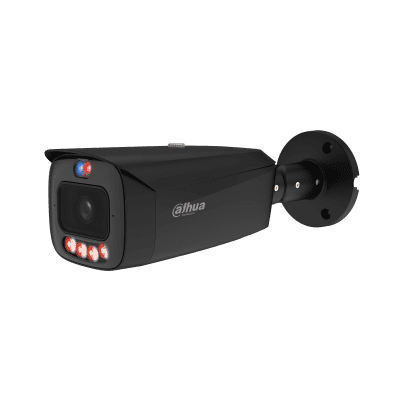

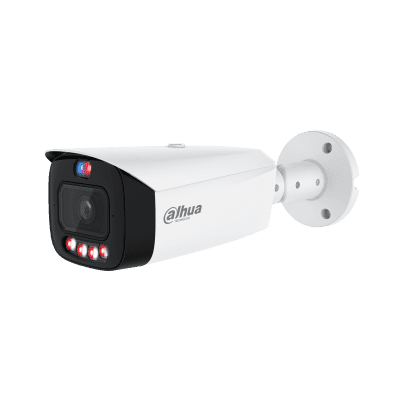

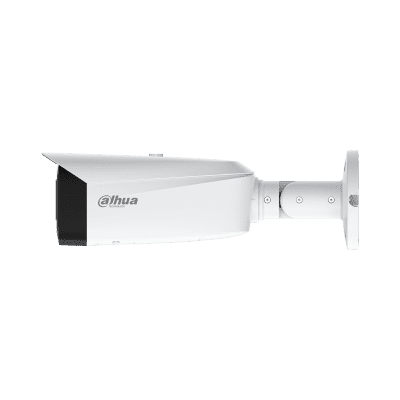

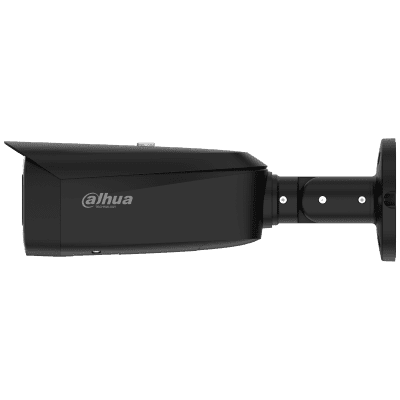

Dahua 8MP AI WizSense TiOC Bullet Camera

Technical Specification

This product model is not available in this region

Dahua 8MP AI WizSense TiOC Bullet Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HFW3849T1-AS-PV-PRO
Series: WizSense 3 Series
Chip Inch Size: 1/1.8
Color Type: Color / Monochrome

Additional info:

Outputs max. 8 MP (3840 ×2160)@25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-HFW3849T1-AS-PV-PRO
Series	WizSense 3 Series
Chip Inch Size	1/1.8
Color Type	Color / Monochrome
Resolution	8 MP
Sensitivity Lux	0.0008 Lux@F1.0 (Color, 30IRE) ; 0.0004 Lux@F1.0 (B/W, 30IRE) ; 0 lux (Illuminator on)
Electrical Specifications	Voltage: 12 V DC, PoE+ Power Consumption: Max. 11.8 W (12 VDC); 15.1 W (PoE)
Motion Activated	Yes
Focal Length mm	2.8 mm;3.6 mm
Mount Type	Pole
Wide Dynamic Range	Yes
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	Auto/Manual 1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56 dB
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)
Network Properties	Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Physical Specifications	Weight g: 1000 Dimensions mm: 288.4 x 94.4 x 84.7
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: ≤ 95
Additional info	Outputs max. 8 MP (3840 ×2160)@25/30 fps. H.265 codec, high compression rate, ultra-low bit rate. Built-in multi-core light, the max. IR distance is 50 m and the max. warm light distance is 50 m ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human) Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
