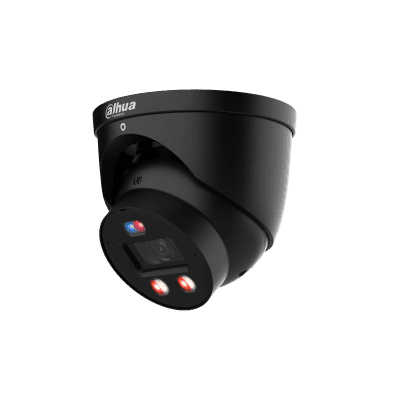

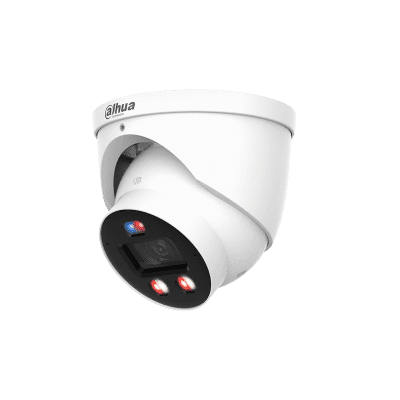

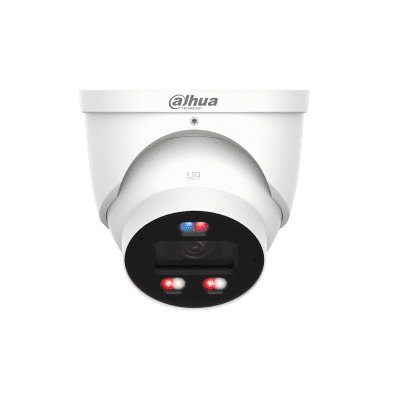

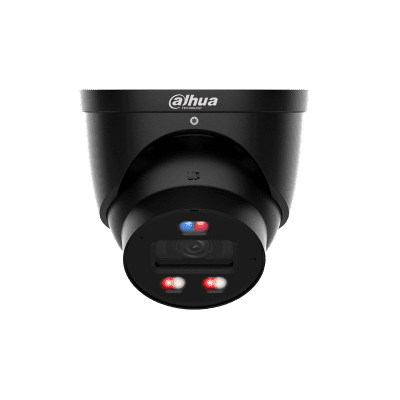

Dahua AI-powered 8MP TiOC Pro WizColor Eyeball Camera

Technical Specification

This product model is not available in this region

Dahua AI-powered 8MP TiOC Pro WizColor Eyeball Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HDW3849H-AS-PV-PRO
Series: WizSense Series
Chip Inch Size: 1/1.8
Color Type: Color / Monochrome

Additional info:

H.265 codec, high compression rate, ultra-low bit rate. Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m. ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human). Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-HDW3849H-AS-PV-PRO
Series	WizSense Series
Chip Inch Size	1/1.8
Color Type	Color / Monochrome
Resolution	8 MP
Sensitivity Lux	0.0008 Lux@F1.0 (Color, 30IRE) ; 0.0004 Lux@F1.0 (B/W, 30IRE) ; 0 lux (Illuminator on)
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: Max. 8.2 W (12 VDC); 10 W (PoE)
Focal Length mm	2.8 mm; 3.6 mm
Wide Dynamic Range	Yes
Network Properties	Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	Auto/Manual 1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56 dB
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Physical Specifications	Weight g: 800 Dimensions mm: Φ122.0 x 116.1
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: ≤ 95
Additional info	H.265 codec, high compression rate, ultra-low bit rate. Built-in multi-core light, the max. IR distance is 30 m and the max. warm light distance is 30 m. ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human). Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.
