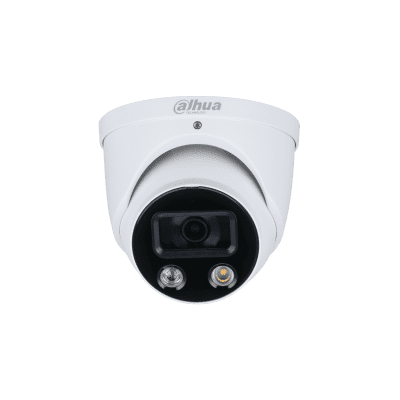

Dahua DH-IPC-HDW3849H-AS-PV 8 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera

Technical Specification

This product model is not available in this region

Dahua DH-IPC-HDW3849H-AS-PV 8 MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball WizSense Network Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HDW3849H-AS-PV
Series: WizSense Series
Chip Inch Size: 1/2.8
Color Type: Color

Additional info:

8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition Outputs max.8MP (3840 × 2160) @20 fps (AI function enabled by default)and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled) H.265 codec, high compression rate, low bit rate Built-in warm illuminator, and the max. illumination distance: 30 m ROI, Smart H.265+/Smart H.264+, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes > Intelligent detection: Intrusion, tripwire (support the classification and · accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker 12V DC/PoE power supply IP67 protection SMD Plus Red and blue flashlight alarm

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-HDW3849H-AS-PV
Series	WizSense Series
Chip Inch Size	1/2.8
Color Type	Color
Resolution	8 MP
Sensitivity Lux	0.007
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 7.8W (DC12V); 8.2W (POE)
Motion Activated	Yes
Focal Length mm	2.8 mm; 3.6 mm
Wide Dynamic Range	Yes
Picture Elements HxV	3840 x 2160
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	> 56
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG
Network Properties	Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Physical Specifications	Weight g: 754 Dimensions mm: Φ122 x 110.9
Environmental Specifications	Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP67 Operating Humidity %: <95
System Requirements	Web Browser: IE: IE8 and later, Chrome, Firefox, Safari: Safari 12 and later
Additional info	8MP, 1/2.8” CMOS image sensor, low illuminance, high image definition Outputs max.8MP (3840 × 2160) @20 fps (AI function enabled by default)and supports 8MP (3840 × 2160) @25/30 fps (when AI function disabled) H.265 codec, high compression rate, low bit rate Built-in warm illuminator, and the max. illumination distance: 30 m ROI, Smart H.265+/Smart H.264+, flexible coding, applicable to various bandwidth and storage environments Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes > Intelligent detection: Intrusion, tripwire (support the classification and · accurate detection of vehicle and human) Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection Supports sound and light alarm linkage. When an alarm is triggered, the camera links sound alarm and light flashing Supports one-tap disarming. You can disarm the events of alarm output, sending email, audio, and light in the configured period Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card, built-in Mic and speaker 12V DC/PoE power supply IP67 protection SMD Plus Red and blue flashlight alarm
