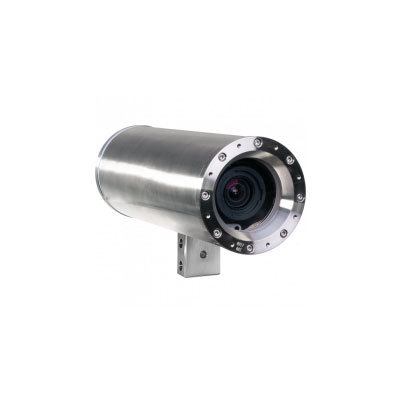

Axis Communications ExCam XF P1367 5MP Explosion-Protected IP Box Camera
Technical Specification
- Make: Axis Communications
- Model code: ExCam XF P1367
- Chip Inch Size: 1/3
- Color Type: True Day / Night
- Resolution: 5 MP
Certified for ATEX, IECEx, EAC Ex, and IA; Zones 1, 2, 21, and 22; Groups IIC and IIIC Cost-efficient installation with PoE Low weight for simple installation Remote zoom and focus with i-CS lens 5 MP resolution at 25/30 fps Images are optimized for forensic purposes regardless of lighting conditions, thanks to Lightfinder and WDR–Forensic Capture Helps detecting unauthorized individuals and monitor employee safety in hazardous areas Suitable for onshore, offshore, marine, and heavy industrial environments
Read moreMake | Axis Communications |
---|---|
Manufacturer | Axis Communications |
Category | Video Surveillance>IP cameras |
Model code | ExCam XF P1367 |
Chip Inch Size | 1/3 |
Color Type | True Day / Night |
Resolution | 5 MP |
Digital (DSP) | Yes |
Specialist Type | Megapixel |
Sensitivity Lux | 0.03 |
Auto Iris | Yes |
Direct Drive | Yes |
Electrical Specifications |
Voltage: PoE Power Consumption: 5 W |
Motion Activated | Yes |
Focal Length mm | 2.8 ~ 8.5 |
Mount Type | Wall, Pole |
Wide Dynamic Range | Yes |
Picture Elements HxV | 3072 x 1728 |
Network Properties |
Image Frame Rate: 25 fps / 30 fps Inclusion DVR/ Web Server: Yes Network Protocols: IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
White Balance | Yes |
Electronic Shutter Range | 1/55500 ~ 2 s |
Zoom | Yes |
Compression Type | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG |
Physical Specifications |
Weight g: 7,800 Dimensions mm: 310 x 110 |
Environmental Specifications |
Operating Temperature oC: -60 ~ 60 C (-76 ~ 140 F) Protection: IP68 Operating Humidity %: 10 ~ 100 |
HD | Yes |
Additional info |
|
Download PDF version Download PDF version |
