Hotel managers require security, flexibility, durability, and esthetics in an access management system that can cover guest rooms and shared spaces, on one hand, and private staff areas on the other. With multiple buildings, a private beach, and sports areas, the new TH Resorts Capo Rizzuto on Calabria’s Ionian coast receives high daily traffic from guests and staff, who must have access at different times according to their specific needs. On taking over the resort, TH management quickly identified the need for a new locking system that would allow each staff member to access different, specific areas of the facility.
In specifying a new master key system, they had two more important criteria. Firstly, the solution should be mechanical rather than digital, to preserve existing hotel esthetics. Secondly, they required a hierarchical system, where different staff members could have levels of access authority based on their roles.
A CYS10 system makes fine-grained customization possible
Security of the comfy nickel-silver key is protected against unauthorised copying by two patents

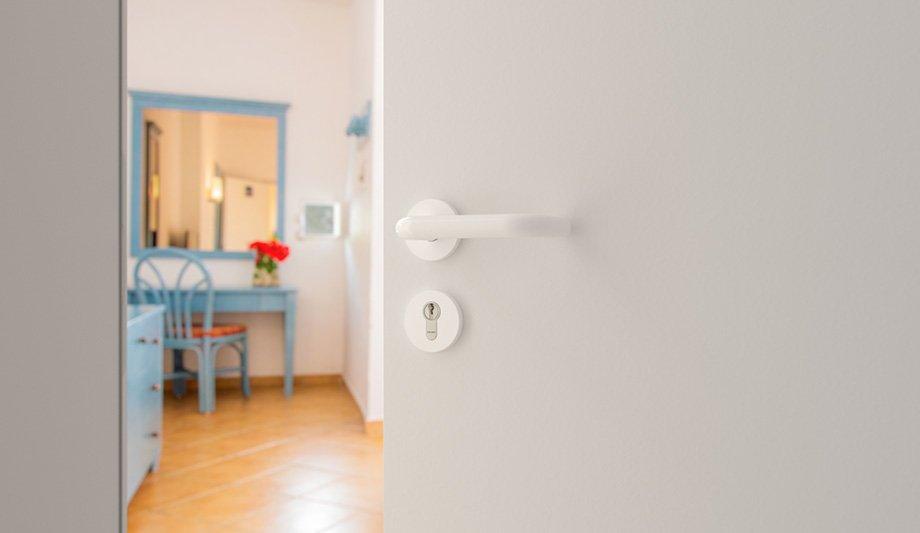

Working closely with the expert specification team at ASSA ABLOY Italia, managers at TH Capo Rizzuto chose a CYS10 master key locking system with Euro profile double cylinders for common area access points and staff-only zones. For guest room doors they selected CYS10 thumbturn cylinders, which lock securely for privacy and quickly unlock from the inside.
The CYS10 platform consists of 6-pin sawn key cylinders; it is tested and certified according to EN 1303:2015 and SKG security standards. The security of the comfortable nickel-silver key is protected against unauthorized copying by two separate patents. Their robust design makes them ideally suited to challenging environments such as a busy hotel.
Effective master key system design
With 63 available key profiles, CYS10 cylinders enable the creation of a complex master key setup with several levels and sub-levels – perfect for access customization. Effective master key system design reduces the number of keys they need to cut, track, or replace. It saves hotel managers time and money. “It is a truly flexible solution and allows us to limit the quantity of keys assigned as much as possible,” says Carmelo Sava, Head of Maintenance at TH Resorts.
Effective master key system design reduces the number of keys they need to cut, track, or replace
Five distinct master key systems – numbering more than 500 CYS10 cylinders in total – were implemented at TH Capo Rizzuto, one for each of the resort’s individual facilities. Each cylinder has its own paired key and, for each building, a master key opens all cylinders. The entire property is controlled by a single grand master key entrusted to management.
Future-proof setup at Capo Rizzuto
“The ASSA ABLOY master key system allows us to manage the access of all our staff without any security problems,” adds Carmelo Sava.
To ensure future-proof setup at Capo Rizzuto, their key systems can adapt or expand at any time: The CYS10 device range includes single, double, thumbturn, screw-in and rim cylinders for interior and exterior doors, switch cylinders for control panels, plus cam locks for letterboxes or furniture. The CYS10 padlock secures gates, lockers, and more.
