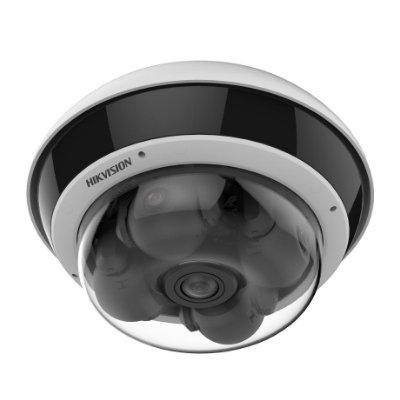

Hikvision Multidirectional PanoVu Cameras – Simplified, Smart Protection in Every Direction

Technical Specification

This product model is not available in this region

Hikvision Multidirectional PanoVu Cameras – Simplified, Smart Protection in Every Direction

Features:

Make: Hikvision
Model code: DS-2CD6D55G2-IZHS(/NFC)
Series: Hikvision Panoramic Series
Resolution: 2560 × 1920
Sensitivity Lux: Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR

Additional info:

4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall Clear imaging against strong back light due to 120 dB true WDR technology Water and dust resistant (IP67) and vandal proof (IK10) Human and vehicle target classification based on deep learning for up to 4 channels Unique PTRZ capability for efficient installation Audio and alarm interface available

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Hikvision
Manufacturer	Hikvision USA Inc.
Category	Video Surveillance>IP cameras
Model code	DS-2CD6D55G2-IZHS(/NFC)
Series	Hikvision Panoramic Series
Resolution	2560 × 1920
Sensitivity Lux	Color: 0.005 Lux @ (F1.2, AGC ON),B/W: 0.002 Lux @ (F1.2, AGC ON),B/W: 0 Lux with IR
Focal Length mm	Varifocal : 2.8 ~ 8 mm / Fixed : 2 mm
Mount Type	Wall, Pendant, Pole, Corner
Wide Dynamic Range	Yes
Network Properties	Image Frame Rate: 25/30 fps Interface: RJ45 10 M/100 M/1000 M self-adaptive Ethernet Network Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, WebSocket, WebSockets, SSL/TLS
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1 s to 1/100,000 s
Compression Type	H.265+/H.265/H.264+/H.264/MJPEG
Physical Specifications	Weight g: 4700 Dimensions mm: Ø290 x 148
Environmental Specifications	Protection: IP67, IK10 Operating Temperature ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: < 95
Additional info	4 adjustable lenses in one camera cover up to 360° field of view, ensuring no blind area monitoring and the monitoring tilt angle can be adjusted Each lens up to 5 MP, capturing clear images, and more details can be displayed on video wall Clear imaging against strong back light due to 120 dB true WDR technology Water and dust resistant (IP67) and vandal proof (IK10) Human and vehicle target classification based on deep learning for up to 4 channels Unique PTRZ capability for efficient installation Audio and alarm interface available
