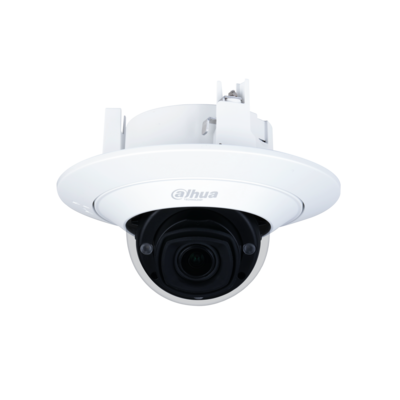

Dahua Technology IPC-HDPW5541GN-ZE 5MP IR Vari-focal WizMind Network Camera, NTSC

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: IPC-HDPW5541GN-ZE
Additional info:

 1/2.7” 5Megapixel progressive scan CMOS   ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments   20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)   WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC   Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS   2.7 mm–13.5 mm motorized lens   1/1 Alarm in/out, 1/1 audio in/out   Max. IR LEDs Length 40 m   Micro SD memory

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code IPC-HDPW5541GN-ZE
Chip Inch Size 1/2.7
Color Type Color / Monochrome
Resolution 5MP
Sensitivity Lux 0.005
Electrical Specifications Voltage: 12 V DC, PoE
Power Consumption: <11W
Motion Activated Yes
Focal Length mm 2.7 ~ 13.5
Mount Type In-ceiling, Ceiling
Wide Dynamic Range Yes
Network Properties Image Frame Rate: 50/60 fps
Interface: RJ-45 (10/100 Base-T)
Network Protocols: IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP ;RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP ;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range Auto/Manual, 1/3 s–1/100000 s
Signal Mode NTSC
Compression Type H.265,H.264,H.264B,H.264H, MJPEG (only supported by sub stream)
Physical Specifications Weight g: 510
Dimensions mm: Φ181 x 131
Environmental Specifications Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: <95
System Requirements Web Browser: IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)
Additional info
  •  1/2.7” 5Megapixel progressive scan CMOS
  •  ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
  •  20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)
  •  WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC
  •  Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS
  •  2.7 mm–13.5 mm motorized lens
  •  1/1 Alarm in/out, 1/1 audio in/out
  •  Max. IR LEDs Length 40 m
  •  Micro SD memory
