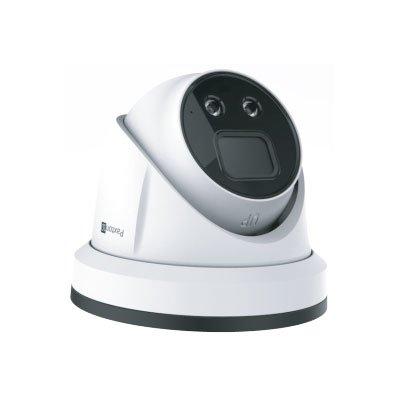

Paxton Access 010-705 Paxton10 Turret IR IP Dome Camera – 4MP

Technical Specification

Features:

Make: Paxton Access
Model code: 010-705
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution TVL: 4 MP

Additional info:

4MP ultra-low light sensor capable of high-resolution recording (2560 x 1440) 64GB high performance SD card IP67 rating Mountable on either Wall or Ceiling Intelligent motion detection Compact size All metal construction 30m IR range 120dB Wide Dynamic Range 12VDC or PoE (af ) 0.003 lux @ F1.4 Fixed 2.8mm focal length

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Paxton Access
Manufacturer	Paxton Access Limited
Category	Video Surveillance>IP Dome cameras
Model code	010-705
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution TVL	4 MP
HD	Yes
Megapixel	Yes
Dome Type	Static
Sensitivity lux	0.003
Digital (DSP)	Yes
Mount Type	Wall, Ceiling
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 12 V DC : 5.8 W; PoE : 6.5 W
Focal length	2.8 mm
Compression	H246
Signal Mode	PAL, NTSC
Built-in IR LED	Yes
Network Properties	Image Frame Rate: 20 fps
Physical Specifications	Dimensions mm: 138 x 126 Weight g: 620
Environmental Specifications	Operating Temp ^oC: -30 ~ +60 C (-22 ~ +140 F) Protection: IP67
Additional info	4MP ultra-low light sensor capable of high-resolution recording (2560 x 1440) 64GB high performance SD card IP67 rating Mountable on either Wall or Ceiling Intelligent motion detection Compact size All metal construction 30m IR range 120dB Wide Dynamic Range 12VDC or PoE (af ) 0.003 lux @ F1.4 Fixed 2.8mm focal length
