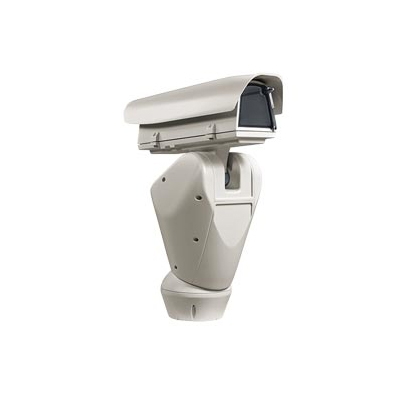

ULISSE PLUS, New Integrated PTZ System For Big Zoom Lenses

Product Profile

ULISSE PLUS is a robust and efficient Pan/Tilt/Zoom unit designed to ensure dynamic and non-stop surveillance of large outdoor areas and withstand harsh weather conditions, reducing maintenance to zero.

This model can contain cameras with medium-sized lenses.

The accurate top-mount construction ensures vision beyond the horizon and the continuous rotation on the horizontal axis, combining high speed to absolute tracking accuracy, both in manual mode and in patrol mode.

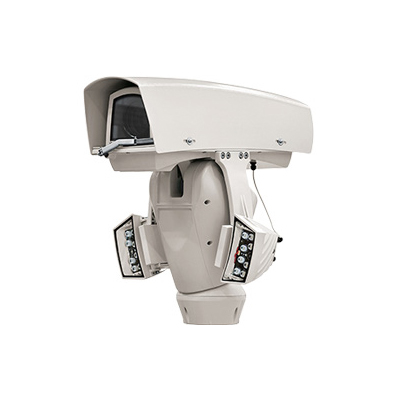

To ensure detailed images even during the night hours, versions are available with LED illuminators, with infrared light or white light.

The unit is equipped with optical sensors which ensure the accurate control of the position in any condition of use.

KEY FEATURES

  • Designed for difficult outdoor environments
  • Choice between different voltages
  • Possibility to choose any camera with any medium/large zoom lens combination
  • Integrated LED illuminators for the best night performance
  • Wiper & washer with different power supply; wide choice of tanks with washer pump available with different capacities and delivery heights
Read more

Technical Specification

Make Videotec
Manufacturer Videotec
Model code ULISSE PLUS
Color Type Color / Monochrome
Pan Speed o/ sec 0.02 ~ 20
Indoor/Outdoor Indoor/Outdoor
Digital (DSP) Yes
Tilt Speed o/ sec 0.02 ~ 20
Electrical Specifications Voltage: 230 V AC
Power Consumption: 100 W
Presets 250
Network Properties Interface: 10/100T
Image Frame Rate: 25 fps
Physical Specifications Dimensions mm: 660 x 330 x 559
Weight g: 21,000
Environmental Specifications Operating Temp oC: -20 ~ +60 C (-4 ~ +140 F)
Protection: IP66
Additional info Videotec ULISSE PLUS is a robust and efficient Pan/Tilt/Zoom unit designed to ensure dynamic and non-stop surveillance large outdoor areas and withstand harsh weather conditions, reducing maintenance to zero. The unit is equipped with a wiper for removing rain and dust from the front glass.
Download PDF version
