As part of their pursuit to develop the smartest locking technology within their markets, Camlock Systems have engineered an adaptable, micro latch system offering multiple configurations, introducing The Series 400.
Miniature locking system
The Series 400 is a high-performance, miniature locking system that was designed around customer needs; maintaining security while preserving precious cabinet space. Engineered to make access control possible in applications with limited room, the S400 is built in two detachable parts, a latch and actuator providing the freedom to detach and house the actuator in the most convenient recess or panel.
Its flexibility and small size mean operators can have a smart lock that enhances the product’s ecosystem, without compromising on function.
Universal installation
Series 400 provides built-in override and lock monitoring as well as optional door monitoring

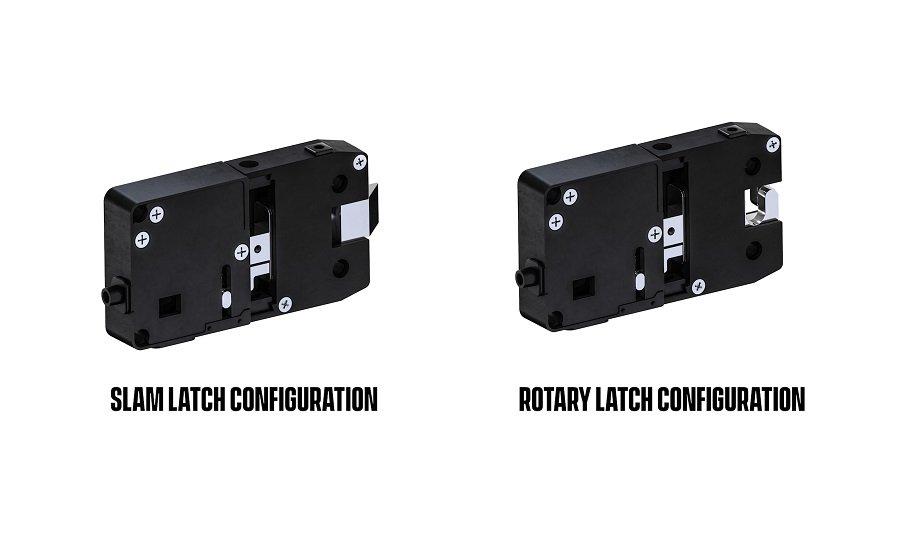

The symmetrical design of the S400 provides a universal installation method, removing the need for a left- or right-hand version. That’s not the only feature that makes it easier to install though, there are also two latch types to choose from, a Slam latch (Series 400-S) or Rotary latch (Series 400-R), providing further adaptability.
The slam latch shines when used in applications such as push to close cabinets, while the rotary latch has the same tamper-resistant, high-strength dual jaws as the patented Series 100. In addition to its functionality, the Series 400 also provides peace of mind due to the built-in override and lock monitoring as well as optional door monitoring.
Multi-lock control
The Series 400-S and Series 400-R are available along with their compatible accessories. There will soon be even more flexibility brought to the S400, with attachable products designed for multi-lock control as well as access control and the addition of a Bowden cable generating further configuration options.
Product features:
- Cycle rating: 50,000
- Built-in lock monitoring
- Easy-to-install. Universal fitting options
- Two-part, detachable lock, and actuator
- Trigger latch remotely via Bowden cable
- Lock and optional door monitoring
- Choice of rotary latch or slam latch
- Integrates with access control systems
- 5, 12, and 24 V dc available
- Fitted with a concealed override
- Two-year warranty
