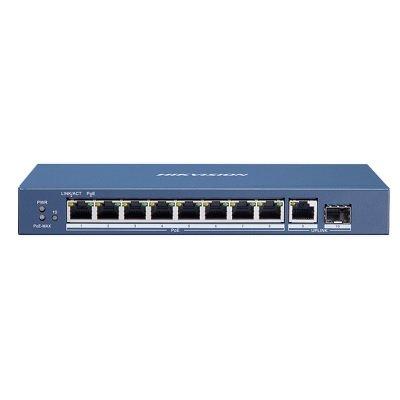

Hikvision DS-3E0510P-E/M 8 Port Gigabit Unmanaged POE Switch

Technical Specification

This product model is not available in this region

Hikvision DS-3E0510P-E/M 8 Port Gigabit Unmanaged POE Switch

Features:

Make: Hikvision
Model code: DS-3E0510P-E/M
POE: Yes
Video inputs / ports: 8
Dimensions mm: 218 x 28 x 109

Additional info:

8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fiber optical port IEEE 802.3at/af standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard 6 KV surge protection for PoE ports PoE power management Gigabit network access Wire-speed forwarding and non-blocking design Store-and-forward switching Solid high-strength metal shell Reliable fan-free design

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Hikvision
Manufacturer	Hikvision USA Inc.
Category	Video Surveillance>Switchers & Switches
Model code	DS-3E0510P-E/M
POE	Yes
Video inputs / ports	8
Physical Specifications	Dimensions mm: 218 x 28 x 109 Weight g: 1,366
Electrical Specifications	Voltage: 48 V DC Power Consumption: 65 W
Environmental Specifications	Operating Temperature ^oC: -10 ~ 55 C (14 ~ 131 F) Operating Humidity %: 5 ~ 95
Additional info	8 × Gigabit PoE ports, 1 × Gigabit RJ45 port, 1 × Gigabit SFP fiber optical port IEEE 802.3at/af standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, and IEEE 802.3z standard 6 KV surge protection for PoE ports PoE power management Gigabit network access Wire-speed forwarding and non-blocking design Store-and-forward switching Solid high-strength metal shell Reliable fan-free design
