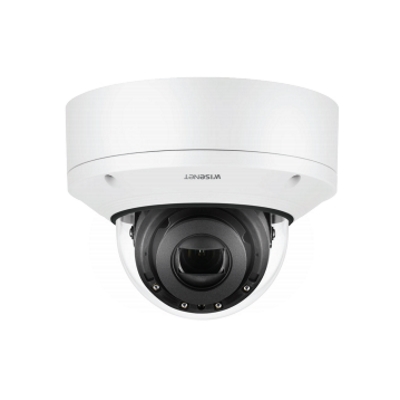

Hanwha Techwin America XND-6081RV 2MP IR network dome camera

Technical Specification

Features:
  • Make: Hanwha Techwin
  • Model code: XND-6081RV
  • Series: WISENET X SERIES
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
Read more
Additional info:

2 Megapixel resolution 0.015Lux@F1.4 (Color), 0Lux (B/W, IR LED on) Day & Night (ICR), WDR (150dB / 120dB) Hallway View, WiseStreamII Support Video & audio analytics, Audio playback DIS and shock detection with built-in gyro sensor Modular structure, PoE, 12VDC IP52, IK10

Read more
Make Hanwha Techwin
Manufacturer Hanwha Techwin America
Model code XND-6081RV
Series WISENET X SERIES
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution TVL 2 MP
Megapixel Yes
Dome Type PTZ
Sensitivity lux 0 ~ 0.015
Indoor/Outdoor Indoor
Digital (DSP) Yes
Electrical Specifications Voltage: 12 V DC, PoE
Focal length 2.8 ~ 12mm
Compression H.265/H.264 : Main / Baseline / High, MJPEG
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter range 2~1 / 12,000s
Built-in IR LED Yes
Zoom Ratio 4.3x
Network Properties Interface: RJ-45, 10/100BASE-T
Network Protocols: Pv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Image Frame Rate: 30/25 fps , 50/60 fps
Physical Specifications Dimensions mm: 160 x 125
Weight g: 1450
Environmental Specifications Operating Temp oC: -25 ~ +60 C (-13 ~ +140 F)
Operating Humidity %: 0 ~ 90
Protection: IP52, IK10
System Requirments Operating System: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12
Web Browser: Google Chrome, MS Explorer11, MS Edge, Mozilla Firefox (Windows 64bit only), Apple Safari (Mac OS X only)
Additional info
  • 2 Megapixel resolution
  • 0.015Lux@F1.4 (Color), 0Lux (B/W, IR LED on)
  • Day & Night (ICR), WDR (150dB / 120dB)
  • Hallway View, WiseStreamII Support
  • Video & audio analytics, Audio playback
  • DIS and shock detection with built-in gyro sensor
  • Modular structure, PoE, 12VDC
  • IP52, IK10
