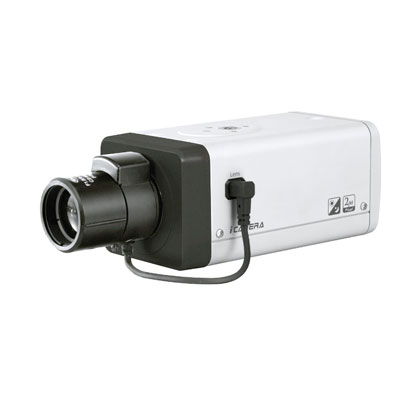

Dahua Technology IPC-HF5200N 2MP Color Monochrome Full HD Network Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology IPC-HF5200N 2MP Color Monochrome Full HD Network Camera

Features:

Make: Dahua Technology
Model code: IPC-HF5200N
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution: 2 MP

Additional info:

Dahua Technology IPC-HF5200N is a 2MP color monochrome full HD network camera that features H.264 & MJPEG dual - stream encoding and built - in 1/1 alarm in/out.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	IPC-HF5200N
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution	2 MP
Digital (DSP)	Yes
Specialist Type	Network
Sensitivity Lux	0.01
Auto Iris	Yes
Lens Mount	C/CS
Electrical Specifications	Voltage: 12 V DC/PoE Power Consumption: <4 W
Picture Elements HxV	1920 x 1080
Network Properties	Image Frame Rate: 30 fps Interface: RJ - 45 (10/100Base - T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3 (4) ~1/10000s
S/ N (Signal/ Noise) Ratio dB	>50
Y/ C (Video Output)	1 channel, BNC (1.0Vp - p / 75 Ohm)
Compression Type	H.264/MJPEG
Physical Specifications	Dimensions mm: 70 x 63 x150 Weight g: 650
Environmental Specifications	Operating Temperature ^oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: <90
HD	Yes
Additional info	Dahua Technology IPC-HF5200N is a 2MP color monochrome full HD network camera that features H.264 & MJPEG dual - stream encoding and built - in 1/1 alarm in/out.
