Dahua IPC-HDBW3841E-AS-S2 8MP IR Fixed-focal Dome WizSense Network Camera

Product Profile

This product model is not available in this region

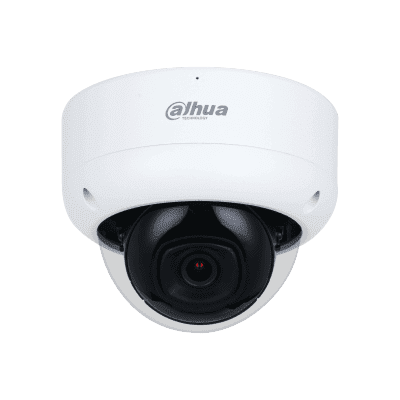

Dahua IPC-HDBW3841E-AS-S2 8MP IR Fixed-focal Dome WizSense Network Camera

Dahua WizSense 3 Series Network Camera greatly saves on bandwidth and storage space through its AI Coding technology. Driven by its advanced deep learning algorithms, the camera supports intelligent functions such as perimeter protection, smart motion detection (SMD), Quick Pick, and AI SSA (AI Scene Self-adaptation), making it easy and convenient to use. Starlight technology and its large aperture lens also allow the camera to produce clear, vivid images even in poor lighting conditions.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Technical Specification

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP Dome cameras
Model code	IPC-HDBW3841E-AS-S2
Series	WizSense Series
Chip Inch Size	1/2.8
Color Type	Color / Monochrome
Resolution TVL	8MP
Megapixel	Yes
Dome Type	Fixed
Sensitivity lux	0.007
Indoor/Outdoor	Outdoor
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: Basic: 4 W (12 VDC); 4.9 W (PoE) ; Max. (WDR + IR intensity + Intelligence): 8.5 W (12 VDC); 9.7 W (PoE)
Focal length	2.8 mm; 3.6 mm
Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter range	1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56
Network Properties	Interface: RJ-45 (10/100 Base-T) Network Protocols: IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP Image Frame Rate: 25/30fps
Physical Specifications	Dimensions mm: 89.1 x Φ111.7 Weight g: 516
Environmental Specifications	Operating Temp ^oC: -40 ~ +60 C (-40 ~ +140 F) Operating Humidity %: < 95 Protection: IP67, IK10
System Requirements	Web Browser: IE:IE11, Chrome, Firefox
Additional info	8-MP 1/2.8" CMOS image sensor, excellent low luminance performance and high definition of images. Outputs max. 8 MP (3840 × 2160) @25/30 fps. H.265 codec allows high compression ratio and ultra-low bit rate. Built-in IR LED, max. IR distance: 30 m. ROI, SMART H.264 +/H.265+,AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human). Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection. Alarm: 1 in, 1 out (Only - AS supports); audio: 1 in, 1 out (Only - AS supports); max. 256 G Micro SD card. built-in Mic.
