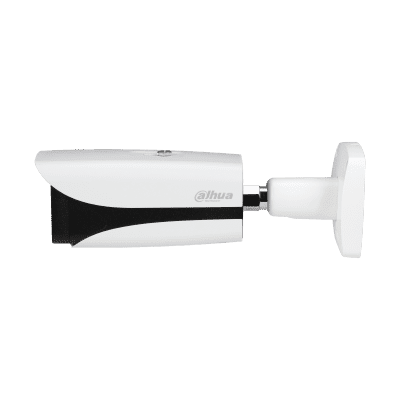

Dahua DH-IPC-HFW5442E-ZE 4MP IR Vari-focal Bullet WizMind Network Camera

Technical Specification

This product model is not available in this region

Dahua DH-IPC-HFW5442E-ZE 4MP IR Vari-focal Bullet WizMind Network Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HFW5442E-ZE
Series: WizMind Series
Chip Inch Size: 1/1.8
Color Type: Color / Monochrome

Additional info:

4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image. Outputs max. 4MP (2688×1520) @25/30 fps. Built-in IR LED, and the max. illumination distance is 60 m. ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc. Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC. SMD 3.0.

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-HFW5442E-ZE
Series	WizMind Series
Chip Inch Size	1/1.8
Color Type	Color / Monochrome
Resolution	4MP
Sensitivity Lux	0.0007 lux@F1.8 (Color, 30 IRE) 0.0004 lux@F1.8 (B/W, 30 IRE) 0 lux (Illuminator on)
Electrical Specifications	Voltage: 12 V DC, PoE, ePoE Power Consumption: Basic: 3.7 W (12 VDC); 4.9 W (PoE) / Max. (H.265+ WDR+ Intelligence on+IR on): 9.8 W (12 VDC); 12.3 W (PoE)
Motion Activated	Yes
Focal Length mm	2.7 ~ 12
Mount Type	Pole
Wide Dynamic Range	Yes
Picture Elements HxV	2688 x 1520
Network Properties	Image Frame Rate: 25/30 fps Interface: RJ-45 (10/100 Enhancement Base-T) Network Protocols: IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	Auto/Manual 1/3 s–1/100,000 s
S/ N (Signal/ Noise) Ratio dB	>56
Compression Type	H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Physical Specifications	Weight g: 1120 Dimensions mm: 273 x 95 x 95
Environmental Specifications	Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F) Protection: IP67, IK10 Operating Humidity %: ≤95
System Requirements	Web Browser: IE: IE 9 and later, Chrome: Chrome 102 and later, Firefox: Firefox 88 and later
Additional info	4-MP 1/1.8" CMOS image sensor, low luminance, and high definition image. Outputs max. 4MP (2688×1520) @25/30 fps. Built-in IR LED, and the max. illumination distance is 60 m. ROI, SVC, SMART H.264+/H.265+, AI H.264/H.265, encoding after filter, flexible coding, applicable to various bandwidth and storage environments. Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes. With deep learning algorithm, it supports: video metadata, smart sound detection, IVS, face detection, smart object detection, and people counting, etc. Alarm: 2 in, 1 out; audio: 1 in, 1 out; supports max. 512 GB Micro SD card, built-in MIC. SMD 3.0.
