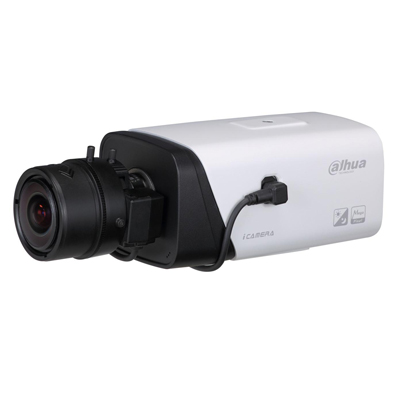

Dahua Technology DH-IPC-HF5220E 1/3-inch Day/night 2MP Full HD Network Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-IPC-HF5220E 1/3-inch Day/night 2MP Full HD Network Camera

Features:

Make: Dahua Technology
Model code: DH-IPC-HF5220E
Resolution: 2 MP
Digital (DSP): Yes
Sensitivity Lux: 0.001

Additional info:

2 megapixel progressive scan CMOS Support H.264&MJPEG dual codec Smart detection supported Multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS Auto back focus Micro SD memory

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-HF5220E
Resolution	2 MP
Digital (DSP)	Yes
Sensitivity Lux	0.001
Electrical Specifications	Voltage: 12 V DC Power Consumption: 10 W
Wide Dynamic Range	Yes
Picture Elements HxV	1920 x 1080
Network Properties	Image Frame Rate: 30 fps Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour ,802.1x
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3(4) ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB	>50
Y/ C (Video Output)	BNC (1.0Vp-p/75 ohm)
Compression Type	H.264/H.264H/H.264B/MJPEG
Physical Specifications	Weight g: 300 Dimensions mm: 74 x 66 x 135
Environmental Specifications	Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95
HD	Yes
Additional info	2 megapixel progressive scan CMOS Support H.264&MJPEG dual codec Smart detection supported Multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS Auto back focus Micro SD memory
