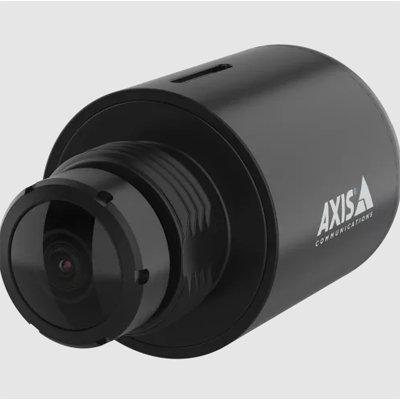

Axis Communications F2137-RE 5 MP Discreet Fisheye Sensor
Technical Specification
- Make: Axis Communications
- Model code: AXIS F2137-RE Fisheye Sensor, 8 pcs
- Chip Inch Size: 1/2.8
- Color Type: Color
- Resolution: 5MP
High-quality 5 MP resolution 185° horizontal field of view Rugged sensor unit with SMA connector Can be installed in vehicles and machinery IP66-/IP67-/IP6K9K-rated
Read more| Make | Axis Communications |
|---|---|
| Manufacturer | Axis Communications |
| Category | Video Surveillance>IP cameras |
| Model code | AXIS F2137-RE Fisheye Sensor, 8 pcs |
| Chip Inch Size | 1/2.8 |
| Color Type | Color |
| Resolution | 5MP |
| Sensitivity Lux | Color: 0.25 lux at 50 IRE, F2.0 |
| Focal Length mm | 1.98 mm |
| Wide Dynamic Range | Yes |
| Electrical Specifications | Power Consumption: Typical 1 W, max 1.8 W |
| Environmental Specifications |
Operating Temperature oC: -40 ~ +60 C (-40 ~ +140 F) Protection: IP66-, IP67-, IP6K9K-2 , and NEMA 4X-rated Operating Humidity %: 10 ~ 100 % |
Product description
AXIS F2137-RE Fisheye Sensor
The AXIS F2137-RE is a highly durable fisheye sensor, offering a remarkable 5 MP resolution with a 185° horizontal field of view. Known for its discreet, compact design, this sensor is ideal for installations where minimal visibility is vital. It is compatible with AXIS F91 Main Units, allowing it to be linked with up to three additional sensors, enhancing flexibility in complex surveillance systems.
Exceptional Performance in Challenging Environments
Engineered to endure severe conditions, the AXIS F2137-RE operates efficiently within a temperature range from -40 °C to 60 °C, and is built to withstand both shock and vibration. The unit is IP66/IP67/IP6K9K rated, ensuring its resilience against dust and powerful water jets, making it highly suitable for deployment in industries requiring rugged equipment.
Key Features
- High Resolution: 5 MP with Forensic WDR for superior image clarity.
- Wide Field of View: 185° horizontal and 125° vertical field of view.
- Robust Design: Withstands harsh environments thanks to its aluminium casing and IP ratings.
- Versatile Installation: Supports integration in various systems with SMA connectors.
- Energy Efficient: Typical power consumption of only 1 W.
Ideal Use Cases
This fisheye sensor is particularly beneficial for installations in high-vibration environments, such as vehicles and industrial machinery. Its rugged build and comprehensive field of view make it ideal for applications demanding wide area surveillance under tough conditions.
