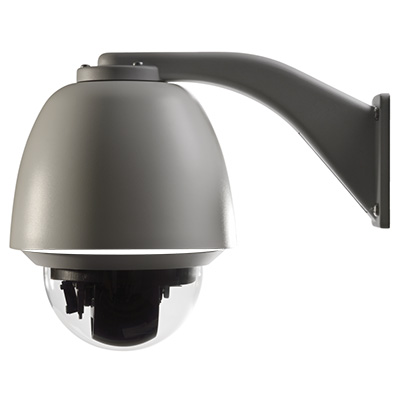

UltraView UVP-N120S-36X-N Indoor IP PTZ Camera

Technical Specification

Features:
  • Make: UltraView
  • Model code: UVP-N120S-36X-N
  • Chip Inch Size: 1/4
  • Color Type: Color / Monochrome
  • Resolution TVL: 4CIF
Read more
Make UltraView
Manufacturer Interlogix
Model code UVP-N120S-36X-N
Chip Inch Size 1/4
Color Type Color / Monochrome
Resolution TVL 4CIF
Dome Type PTZ
Sensitivity lux 0.1
Pan Speed o/ sec 540
Indoor/Outdoor Indoor
Tilt Speed o/ sec 400
Mount Type Surface
Electrical Specifications Voltage: 24 V AC
Power Consumption: 15 W
Focal length 3.4 ~ 122.4 mm
Presets 256
Compression H.264
Back Light Compensation Yes
Electronic Shutter range 1/3 ~ 1/10,000 sec
S/ N (Signal/ Noise) Ratio dB >50
Signal Mode NTSC
Zoom Ratio x36
Network Properties Interface: RJ45 Ethernet
Image Frame Rate: 30 fps
Environmental Specifications Operating Temp oC: -10 ~ +50
Protection: IP54
