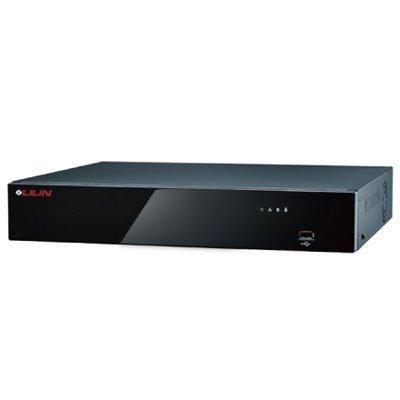

LILIN NVR6208E 8 Channel PoE 4K Standalone NVR

Technical Specification

Features:

Make: LILIN
Model code: NVR6208E
Recording Mode: Real Time / Event
Video inputs: 8
Software solution: Yes

Additional info:

8 Channel H.264 / H.265 network camera input Up to 4K H.264 /H.265 network camera support 8 Port PoE, automatic network camera plug and play P2P QR code UID connection for APP and Navigator Network maximum input through up to 64Mbps NDAA Compliant AES-256 encryption

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	LILIN
Manufacturer	LILIN
Category	Video Surveillance>Network Video Recorders (NVRs)
Model code	NVR6208E
Recording Mode	Real Time / Event
Video inputs	8
Software solution	Yes
Hardware solution	Yes
Inbuilt multiplexer	Yes
Type of multiplexer functions	Simultaneous Live, Recording, Playback
Recording system	HDD
Storage capacity	16 TB
Secondary storage	USB
Storage rate	240 fps
Resolution	4K
PTZ control	Yes
Alarm Handling	DI × 8 and DO × 1 (With programmable condition)
Audio recording properties	8 CH (Network camera), G.711 u-law 8K & AAC; RCA × 1 (0.7Vp-p, 300 Hz to 3KHz)
Video motion detection	Yes
Operating system	Embedded Linux Kernel 4.9
Electrical Specifications	Voltage: 48 V DC Power consumption (W): 120 W
Physical Specifications	Weight (kg): 2.4 (without hard drive) Dimensions (mm): 360 x 316 x 60
Environmental Specifications	Operating temperature (°C): 0 ~ 45 C (32 ~ 113 F) Operating humidity (%): 5 ~ 80
Additional info	8 Channel H.264 / H.265 network camera input Up to 4K H.264 /H.265 network camera support 8 Port PoE, automatic network camera plug and play P2P QR code UID connection for APP and Navigator Network maximum input through up to 64Mbps NDAA Compliant AES-256 encryption
