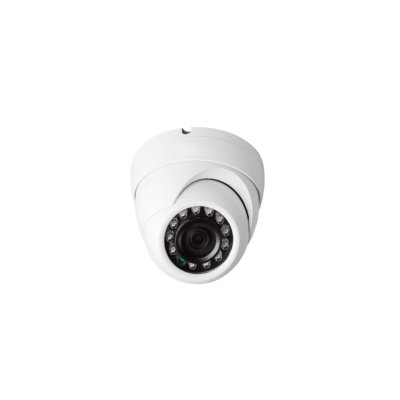

Eagle Eye Networks CZ02 2MP Indoor IR IP Dome Camera

Technical Specification

Features:
  • Make: Eagle Eye Networks
  • Model code: CZ02
  • Chip Inch Size: 1/2.7
  • Color Type: Color / Monochrome
  • Resolution TVL: 2 MP
Read more
Additional info:

A 2MP indoor pan/tilt monitoring camera that incorporates features necessary to cover blind spots under both day and night conditions Comes preconfigured to securely operate with the Eagle Eye CameraManager and Cloud VMS Camera with microphone, WiFi 3.6mm lens Wide angle view (93°) Wide Dynamic Range Night Vision IR LED, 10m Range (33ft)

Read more
Make Eagle Eye Networks
Manufacturer Eagle Eye Networks, Inc.
Model code CZ02
Chip Inch Size 1/2.7
Color Type Color / Monochrome
Resolution TVL 2 MP
Megapixel Yes
Sensitivity lux 0 ~ 0.218
Indoor/Outdoor Indoor
Digital (DSP) Yes
Electrical Specifications Voltage: 5 V DC
Power Consumption: 3.5 W
Focal length 3.6 mm
Compression H.265, H.264, and MJPEG
Back Light Compensation Yes
Electronic Shutter range 1/3s ~ 1/100,000s
Built-in IR LED Yes
Network Properties Interface: RJ-45 Female 10/100 Base-T
Image Frame Rate: 25 fps / 30 fps
Inclusive DVR/ Web Server: Micro SD/SDHC/SDXC
Physical Specifications Dimensions mm: 106 x 77 x 77
Weight g: 238
Environmental Specifications Operating Temp oC: -10 ~ 45 C (14 ~ 113 F)
Operating Humidity %: 0 ~ 95
Additional info
  • A 2MP indoor pan/tilt monitoring camera that incorporates features necessary to cover blind spots under both day and night conditions
  • Comes preconfigured to securely operate with the Eagle Eye CameraManager and Cloud VMS
  • Camera with microphone, WiFi
  • 3.6mm lens
  • Wide angle view (93°)
  • Wide Dynamic Range
  • Night Vision IR LED, 10m Range (33ft)
Download PDF version Download PDF version
