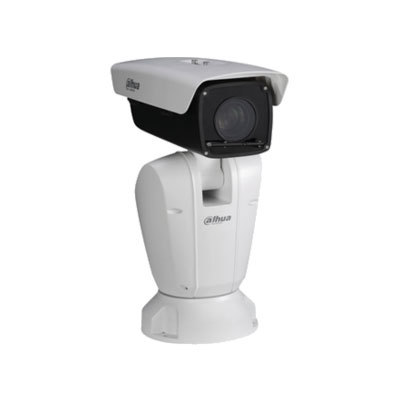

Dahua Technology PTZ12240-IRB-N 2MP 40x Network IR Positioning System

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology PTZ12240-IRB-N 2MP 40x Network IR Positioning System

Features:

Make: Dahua Technology
Model code: PTZ12240-IRB-N
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution: 2MP

Additional info:

1/2.8” 2Megapixel CMOS Powerful 40x optical zoom Support Triple-stream encoding Max. 25/30fps@1080P, 25/30/50/60fps@720P Auto-tracking and IVS IR Distance up to 300m IP66

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	PTZ12240-IRB-N
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution	2MP
Digital (DSP)	Yes
Specialist Type	Infrared
Sensitivity Lux	0 ~ 0.05
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 24 V AC Power Consumption: 50W
Focal Length mm	7.9 ~ 316
Wide Dynamic Range	Yes
Picture Elements HxV	1920 × 1080
Network Properties	Image Frame Rate: 25 ~ 60 fps Interface: RJ-45 (10Base-T/100Base-TX) Network Protocols: IPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/1s ~ 1/30,000s
S/ N (Signal/ Noise) Ratio dB	> 55
Compression Type	H.264 / MJPEG
Physical Specifications	Weight g: 10,500 Dimensions mm: 203 x 391 x 472
Environmental Specifications	Protection: IP66 Operating Temperature ^oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: < 95
Additional info	1/2.8” 2Megapixel CMOS Powerful 40x optical zoom Support Triple-stream encoding Max. 25/30fps@1080P, 25/30/50/60fps@720P Auto-tracking and IVS IR Distance up to 300m IP66
