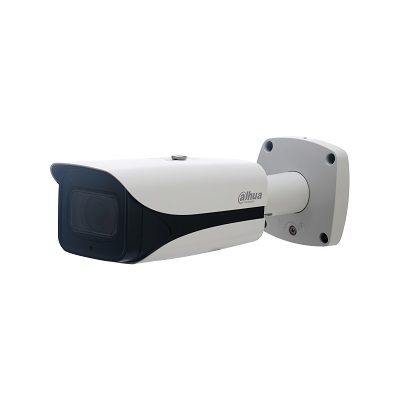

Dahua Technology IPC-HFW5231E-Z5E 2MP WDR IR Bullet Network Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology IPC-HFW5231E-Z5E 2MP WDR IR Bullet Network Camera

Features:

Make: Dahua Technology
Model code: IPC-HFW5231E-Z5E
Series: Eco-Savvy 3.0 series
Resolution: 2MP
Digital (DSP): Yes

Additional info:

1/2.8” 2Megapixel progressive scan STARVIS™ CMOS H.265&H.264 triple-stream encoding 50/60fps@1080(1920×1080) Smart Detection supported WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 7mm ~35mm 5X zoom lens 2/1 Alarm in/out, 1/1 audio in/out Max. IR LEDs Length 100m

Contact manufacturer Contact manufacturer Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	IPC-HFW5231E-Z5E
Resolution	2MP
Digital (DSP)	Yes
Sensitivity Lux	0 ~ 0.006
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 12.9 W
Motion Activated	Yes
Focal Length mm	7 ~ 35
Wide Dynamic Range	Yes
Picture Elements HxV	1920 x 1080
Network Properties	Image Frame Rate: 25 ~ 60 fps Interface: RJ-45 (10/100Base-T) Network Protocols: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3 ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB	50
Compression Type	H.265+, H.265, H.264+, H.264
Physical Specifications	Dimensions mm: 273 x 95 x 95 Weight g: 1,110
Environmental Specifications	Protection: IP67, IK10 Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95
System Requirements	Web Browser: IE, Chrome, Firefox, Safari
Additional info	1/2.8” 2Megapixel progressive scan STARVIS™ CMOS H.265&H.264 triple-stream encoding 50/60fps@1080(1920×1080) Smart Detection supported WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 7mm ~35mm 5X zoom lens 2/1 Alarm in/out, 1/1 audio in/out Max. IR LEDs Length 100m
