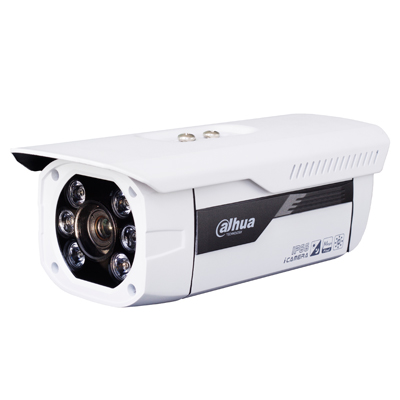

Dahua Technology IPC-HFW5100-IRA-0722A 1/3-inch Day/night 1.3MP HD Network IR Bullet Camera

Please note: this is a discontinued product.

See relevant products

Features:

Additional info:

1.3 megapixel progressive scan Aptina CMOS Multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS Max. IR LEDs length 100m

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	IPC-HFW5100-IRA-0722A
Resolution	1.3 MP
Digital (DSP)	Yes
Auto Iris	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: 16 W
Focal Length mm	7 ~ 22
Wide Dynamic Range	Yes
Picture Elements HxV	1280 x 960
Network Properties	Image Frame Rate: 30 fps Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, GB28181
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3(4) ~ 1/10000s
S/ N (Signal/ Noise) Ratio dB	>50
Y/ C (Video Output)	BNC (1.0Vp-p, 75 ohms)
Compression Type	H.264/H.264H/MJPEG
Physical Specifications	Weight g: 2,500 Dimensions mm: 288 x 118 x 101
Environmental Specifications	Protection: IP66 Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95
HD	Yes
Additional info	1.3 megapixel progressive scan Aptina CMOS Multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS Max. IR LEDs length 100m
