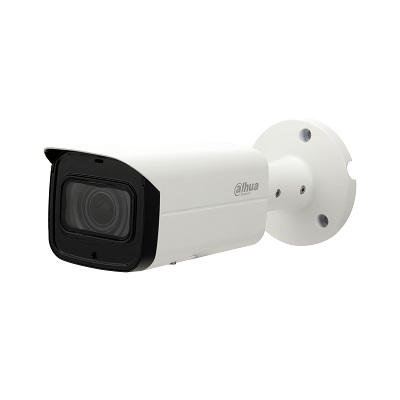

Dahua Technology IPC-HFW4831T-ASE 8MP WDR IR Mini Bullet Network Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology IPC-HFW4831T-ASE 8MP WDR IR Mini Bullet Network Camera

Features:

Make: Dahua Technology
Model code: IPC-HFW4831T-ASE
Series: Eco-Savvy 3.0 series
Resolution: 8MP
Digital (DSP): Yes

Additional info:

1/2.5” 8Megapixel progressive scan STARVIS™ CMOS H. 265&H.264 triple-stream encoding 15fps@4K(3840×2160),25/30fps@3M(2304×1296) Smart Detection supported WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.8mm fixed lens (4mm optional) Max. IR LEDs Length 60m

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	IPC-HFW4831T-ASE
Resolution	8MP
Digital (DSP)	Yes
Sensitivity Lux	0.06 ~ 0
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 11 W
Motion Activated	Yes
Focal Length mm	2.8 ~ 4
Wide Dynamic Range	Yes
Picture Elements HxV	3840 x 2160
Network Properties	Image Frame Rate: 15 ~ 30 fps Interface: RJ-45 (10/100Base-T) Network Protocols: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3 ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB	50
Compression Type	H.265+, H.265, H.264+, H.264
Physical Specifications	Weight g: 815 Dimensions mm: 244 x 79 x 76
Environmental Specifications	Protection: IP67, IK10 Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95
System Requirements	Web Browser: IE, Chrome, Firefox, Safari
Additional info	1/2.5” 8Megapixel progressive scan STARVIS™ CMOS H. 265&H.264 triple-stream encoding 15fps@4K(3840×2160),25/30fps@3M(2304×1296) Smart Detection supported WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS 2.8mm fixed lens (4mm optional) Max. IR LEDs Length 60m
