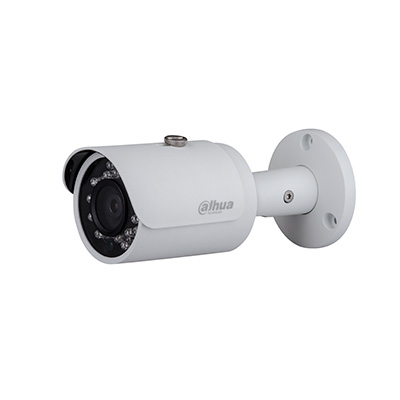

Dahua Technology IPC-HFW4421S 4MP Full HD WDR Network Small IR Bullet Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: IPC-HFW4421S
  • Series: WISENET X SERIES
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
Read more
Additional info:

IPC-HFW4421S is a 4MP full HD WDR network small IR bullet camera featuring smart detection, multiple network monitoring and web viewer.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code IPC-HFW4421S
Series WISENET X SERIES
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution 4MP
Digital (DSP) Yes
Specialist Type Network
Sensitivity Lux 0.01
Auto Iris Yes
Direct Drive Yes
Electrical Specifications Voltage: 12 V DC
Power Consumption: 5 W
Focal Length mm 3.6
Wide Dynamic Range Yes
Picture Elements HxV 2688 x 1520
Network Properties Image Frame Rate: 30 fps / 25 fps
Interface: RJ-45 (10/100Base-T)
Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/3(4) ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB 50
Compression Type H.264/H.264B/H.264H/ MJPEG
Physical Specifications Weight g: 420
Dimensions mm: 70 x 165
Environmental Specifications Protection: IP67
Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: 0 ~ 95
HD Yes
Additional info

IPC-HFW4421S is a 4MP full HD WDR network small IR bullet camera featuring smart detection, multiple network monitoring and web viewer.
