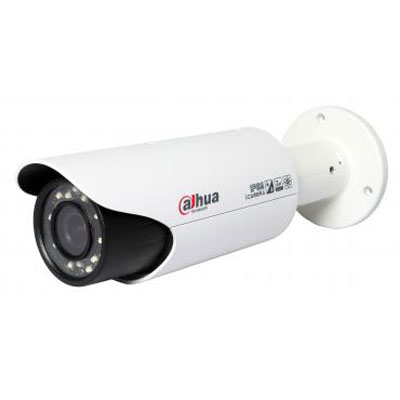

Dahua Technology IPC-HFW3202CN 2MP Full HD Network (Motorized) IR-bullet Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology IPC-HFW3202CN 2MP Full HD Network (Motorized) IR-bullet Camera

Features:

Make: Dahua Technology
Model code: IPC-HFW3202CN
Chip Inch Size: 1/3
Color Type: Color / Monochrome
Resolution: 2 MP

Additional info:

Dahua Technology IPC-HFW3202CN is a 2MP full HD network (motorized) IR-bullet camera. It features multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS and H.264 & MJPEG dual-stream encoding.

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	IPC-HFW3202CN
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution	2 MP
Digital (DSP)	Yes
Specialist Type	Megapixel
Auto Iris	Yes
Electrical Specifications	Voltage: 12 V DC Power Consumption: <10W
Focal Length mm	3 ~ 9
Picture Elements HxV	1920 x1080
Network Properties	Image Frame Rate: 30 fps Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/4~1/10000s
S/ N (Signal/ Noise) Ratio dB	>50
Y/ C (Video Output)	1 channel, BNC(1.0Vp-p/75 Ohms)
Compression Type	H.264/MJPEG
Physical Specifications	Weight g: 1250 Dimensions mm: 104 x 307
Environmental Specifications	Protection: IP66 Operating Temperature ^oC: -10 ~ +60 C (14 ~ 140 F) Operating Humidity %: 10 ~ 90
HD	Yes
Additional info	Dahua Technology IPC-HFW3202CN is a 2MP full HD network (motorized) IR-bullet camera. It features multiple network monitoring: web viewer, CMS(DSS/PSS) & DMSS and H.264 & MJPEG dual-stream encoding.
