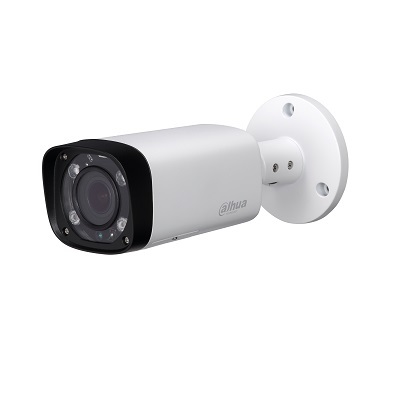

Dahua Technology IPC-HFW2421R-ZS/VFS-IRE6 4MP WDR IR Bullet Network Camera

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology IPC-HFW2421R-ZS/VFS-IRE6 4MP WDR IR Bullet Network Camera

Features:

Make: Dahua Technology
Model code: IPC-HFW2421R-ZS/VFS-IRE6
Series: Lite series
Chip Inch Size: 1/3
Color Type: Color / Monochrome

Additional info:

1/3” 4Megapixel progressive CMOS H.264+ & H.264 dual-stream encoding 20fps@4M(2688x1520) & 25/30fps@3M (2304×1296) WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS Micro SD card slot, up to 128GB

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	IPC-HFW2421R-ZS/VFS-IRE6
Chip Inch Size	1/3
Color Type	Color / Monochrome
Resolution	4MP
Digital (DSP)	Yes
Specialist Type	Network
Sensitivity Lux	0 ~ 0.1
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 12 V DC, PoE Power Consumption: 12.9 W
Motion Activated	Yes
High Speed	Yes
Focal Length mm	2.7 ~ 12
Wide Dynamic Range	Yes
Picture Elements HxV	2688 x 1520
Network Properties	Image Frame Rate: 20 ~ 30 fps Interface: RJ-45 (10/100Base-T) Network Protocols: HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3(4) ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB	50
Compression Type	H.264+, H.264
Physical Specifications	Weight g: 685 Dimensions mm: 72 x 80 x 213
Environmental Specifications	Protection: IP67 Operating Temperature ^oC: -30 ~ +60 C (-22 ~ +140 F) Operating Humidity %: 0 ~ 95
System Requirements	Web Browser: IE, Chrome, Firefox, Safari
Additional info	1/3” 4Megapixel progressive CMOS H.264+ & H.264 dual-stream encoding 20fps@4M(2688x1520) & 25/30fps@3M (2304×1296) WDR(120dB), Day/Night(ICR), 3DNR, AWB, AGC, BLC Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS Micro SD card slot, up to 128GB
