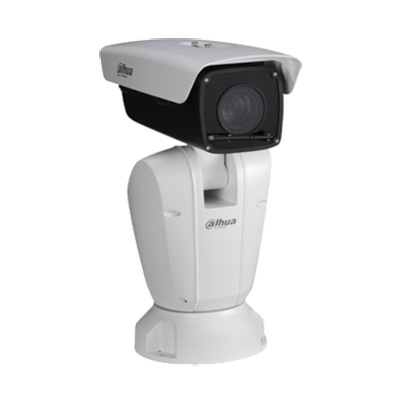

Dahua Technology DH-PTZ12230F-IRB-N 2 Megapixel Full HD 30x Starlight Network IR Positioning System

Technical Specification

Please note: this is a discontinued product.

See relevant products

Dahua Technology DH-PTZ12230F-IRB-N 2 Megapixel Full HD 30x Starlight Network IR Positioning System

Features:

Make: Dahua Technology
Model code: DH-PTZ12230F-IRB-N
Resolution: 2MP
Digital (DSP): Yes
Sensitivity Lux: 0.0002

Additional info:

DH-PTZ12230F-IRB-N is a 2 megapixel full HD 30x Starlight network IR positioning system featuring multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Contact manufacturer Contact manufacturer

Datasheet Datasheet

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-PTZ12230F-IRB-N
Resolution	2MP
Digital (DSP)	Yes
Sensitivity Lux	0.0002
Auto Iris	Yes
Direct Drive	Yes
Electrical Specifications	Voltage: 24 V AC Power Consumption: 70 W
Motion Activated	Yes
Focal Length mm	6 ~ 180
Wide Dynamic Range	Yes
Picture Elements HxV	1920 x 1080
Network Properties	Image Frame Rate: 30 fps Interface: RJ-45 (10/100Base-T) Network Protocols: IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/1 ~ 1/30,000s
S/ N (Signal/ Noise) Ratio dB	> 55
Y/ C (Video Output)	BNC(1.0Vp-p/75?)
Compression Type	H.264 / MJPEG
Physical Specifications	Weight g: 10,500 Dimensions mm: 203 x 391 x 472
Environmental Specifications	Protection: IP66 Operating Temperature ^oC: -40 ~ +70 C (-40 ~ +158 F) Operating Humidity %: 0 ~ 95
HD	Yes
Additional info	DH-PTZ12230F-IRB-N is a 2 megapixel full HD 30x Starlight network IR positioning system featuring multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
