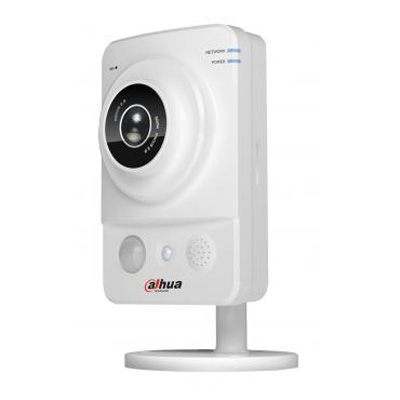

Dahua Technology DH-IPC-K100A HD Cube Network Camera

Please note: this is a discontinued product.

See relevant products

Features:

Additional info:

DH-IPC-K100A is 1/3” HD cube network camera with 1.3Megapixel Aptina CMOS, Multiple network monitoring.

Contact manufacturer Contact manufacturer

Make	Dahua Technology
Manufacturer	Dahua Technology USA Inc.
Category	Video Surveillance>IP cameras
Model code	DH-IPC-K100A
Resolution	1280 x 960
Sensitivity Lux	0.1
Auto Iris	Yes
Electrical Specifications	Voltage: 12VDC Power Consumption: <4W
Focal Length mm	3.6
Picture Elements HxV	1280 x 960
Network Properties	Image Frame Rate: 30fps Interface: G.711a / G.711u (64kbps)/ PCM(128kbps) Network Protocols: IPv4/IPv6, HTTP, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Back Light Compensation	Yes
Auto Gain Control	Yes
White Balance	Yes
Electronic Shutter Range	1/3 ~ 1/10000
S/ N (Signal/ Noise) Ratio dB	>50
Compression Type	H.264/MJPEG
Physical Specifications	Dimensions mm: 66.6 x 43 x 131.2
Environmental Specifications	Operating Temperature ^oC: -10 ~ +50 Operating Humidity %: 10 ~ 90
HD	Yes
Additional info	DH-IPC-K100A is 1/3” HD cube network camera with 1.3Megapixel Aptina CMOS, Multiple network monitoring.
