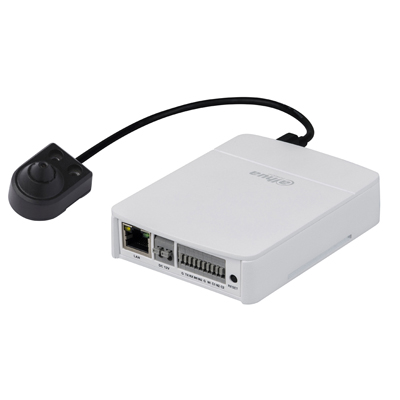

Dahua Technology DH-IPC-HUM8101N Day/night 1.3MP HD Network Pinhole Camera

Technical Specification

Features:
  • Make: Dahua Technology
  • Model code: DH-IPC-HUM8101N
  • Series: EXPTZ Series
  • Chip Inch Size: 1/3
  • Color Type: Color / Monochrome
Read more
Additional info:

Dahua Technology DH-IPC-HUM8101N is a 1/3-inch day/night 1.3 megapixel HD network pinhole camera.

Read more
Make Dahua Technology
Manufacturer Dahua Technology USA Inc.
Model code DH-IPC-HUM8101N
Series EXPTZ Series
Chip Inch Size 1/3
Color Type Color / Monochrome
Resolution 1.3 MP
Digital (DSP) Yes
Specialist Type Network
Sensitivity Lux 0.001
Electrical Specifications Voltage: 12 V DC
Power Consumption: 7 W
Focal Length mm 3.6
Wide Dynamic Range Yes
Picture Elements HxV 1280 x 960
Network Properties Image Frame Rate: 30 fps
Interface: RJ-45 (10/100/1000Base-T)
Network Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Back Light Compensation Yes
Auto Gain Control Yes
White Balance Yes
Electronic Shutter Range 1/4 ~ 1/100000s
S/ N (Signal/ Noise) Ratio dB >50
Compression Type H.264/MJPEG
Physical Specifications Weight g: 460
Dimensions mm: 110 x 83 x 24
Environmental Specifications Operating Temperature oC: -30 ~ +60 C (-22 ~ +140 F)
Operating Humidity %: 0 ~ 95
HD Yes
Additional info

Dahua Technology DH-IPC-HUM8101N is a 1/3-inch day/night 1.3 megapixel HD network pinhole camera.
